LEXUS GS30 35 43 460 UZS190L-BETQKA / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

W(ACTIVE STABILIZER SUSPENSION) (0607-0709)UZS190

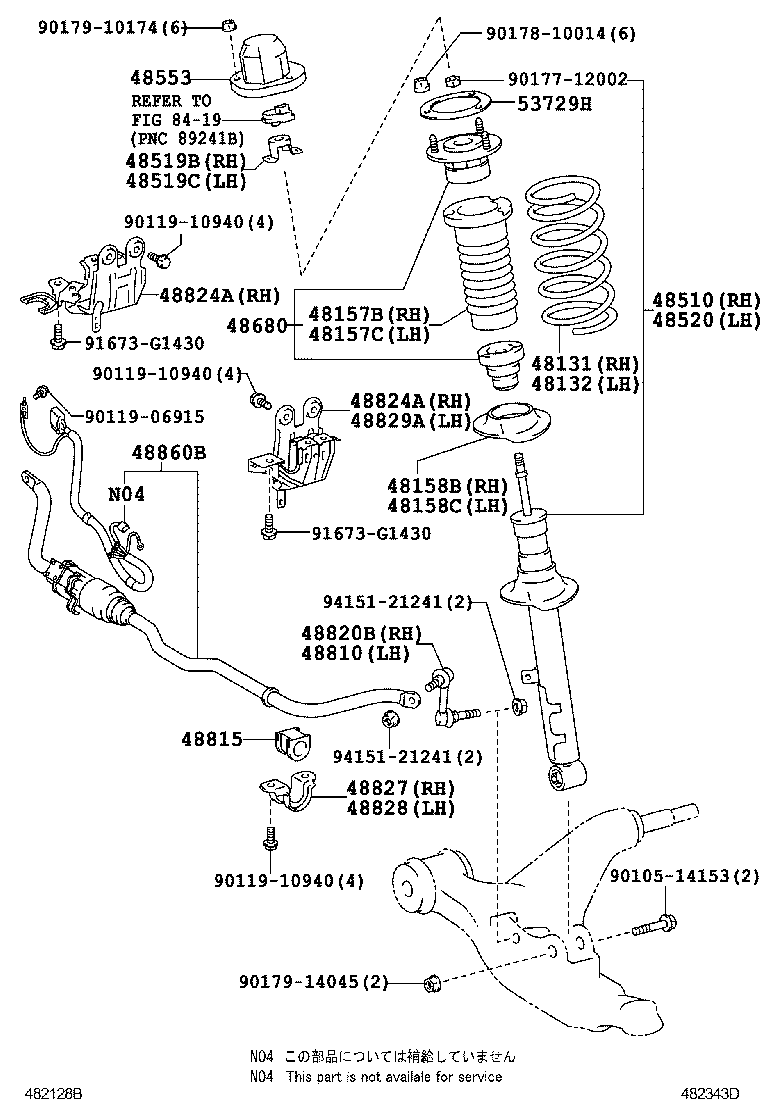

 GS30 35 43 460 |  FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48553 - CAP, SHOCK ABSORBER, UPPER 48680 - SUPPORT ASSY, FRONT SUSPENSION 48810 - LINK ASSY, FRONT STABILIZER, LH 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH 48860B - ACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
