LEXUS LX470 UZJ100L-GNAGKA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

(0505- )

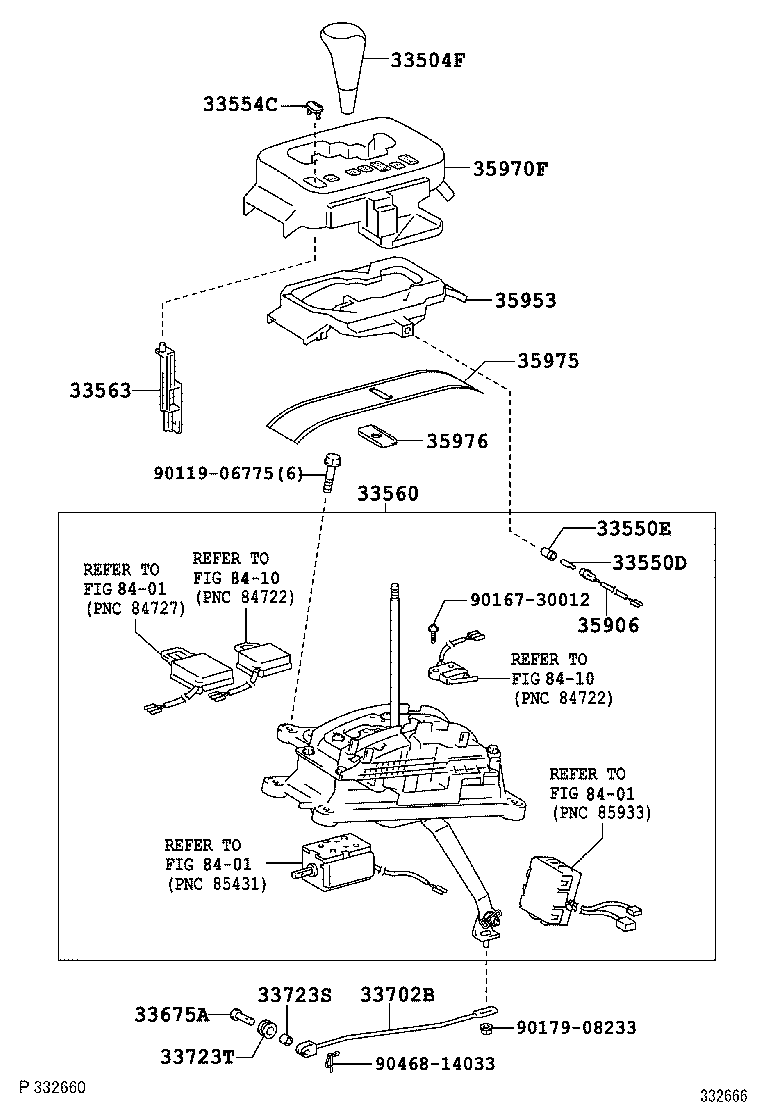

 LX470 |  SHIFT LEVER RETAINER 33504F - KNOB SUB-ASSY, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554C - COVER, SHIFT LOCK RELEASE BUTTON 33560 - UNIT ASSY, SHIFT LOCK CONTROL 33563 - BUTTON, SHIFT LOCK RELEASE 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) 33723S - BUSH (FOR CONNECTING ROD SWIVEL) 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35953 - GUIDE, POSITION INDICATOR LIGHT 35970F - HOUSING ASSY, POSITION INDICATOR 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
