LEXUS ES350 GSV40L-BETGKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

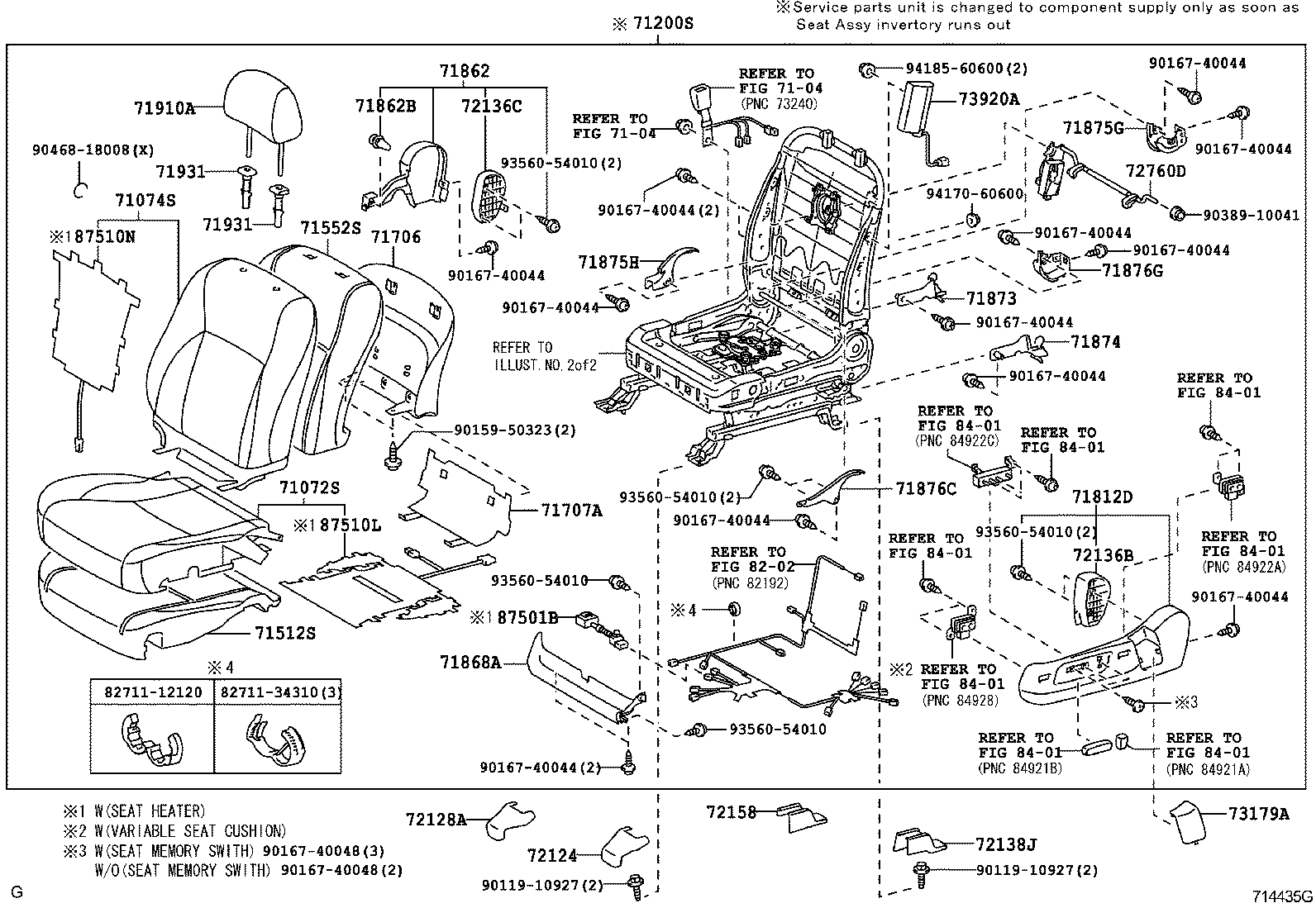

FRONT SEAT SEAT TRACK

LH SEAT ILLUST NO. 1 OF 2(0603- )

ES350 | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71200S - SEAT ASSY, FRONT LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD 71812D - SHIELD, FRONT SEAT CUSHION, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72136B - SPACER, SEAT TRACK, LOWER NO.3 72136C - SPACER, SEAT TRACK, LOWER NO.4 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 73179A - CAP, SEAT BELT ANCHOR COVER, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH ** Refer Fig ** Std Part ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
