LEXUS ES350 GSV40L-BETGKA / ELECTRICAL / NAVIGATION FRONT MONITOR DISPLAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

NAVIGATION FRONT MONITOR DISPLAY

(0603-0908)

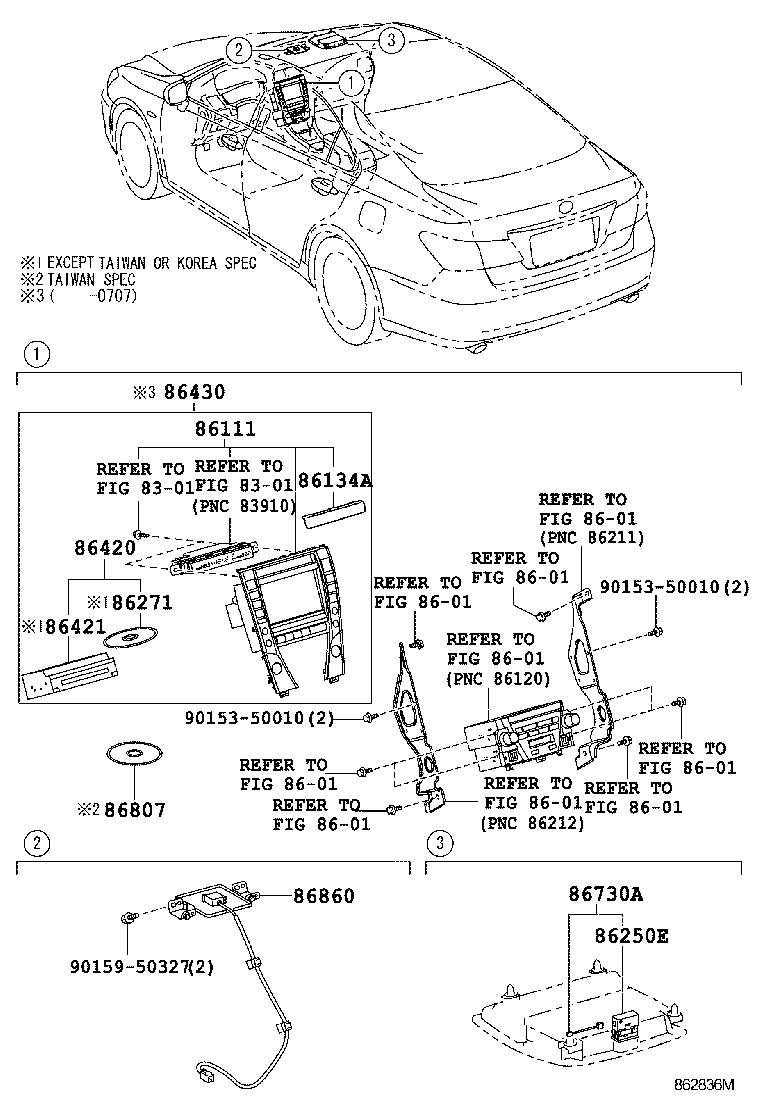

 ES350 |  NAVIGATION FRONT MONITOR DISPLAY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 86111 - MULTI-DISPLAY 86134A - PARTS, MULTI-DISPLAY 86250E - MICROPHONE ASSY, AMPLIFIER 86271 - DISC, DISC PLAYER 86420 - NAVIGATION ASSY, MULTI-MEDIA MODULE 86421 - BOARD, NAVIGATION MODULE 86430 - DISPLAY ASSY, MULTI-MEDIA MODULE 86730A - MICROPHONE ASSY, TELEPHONE 86807 - DISC KIT, CD-ROM 86860 - ANTENNA ASSY, NAVIGATION  ** Std Part  ** Std Part  ** Std Part
