LEXUS ES350 GSV40L-BETGKA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

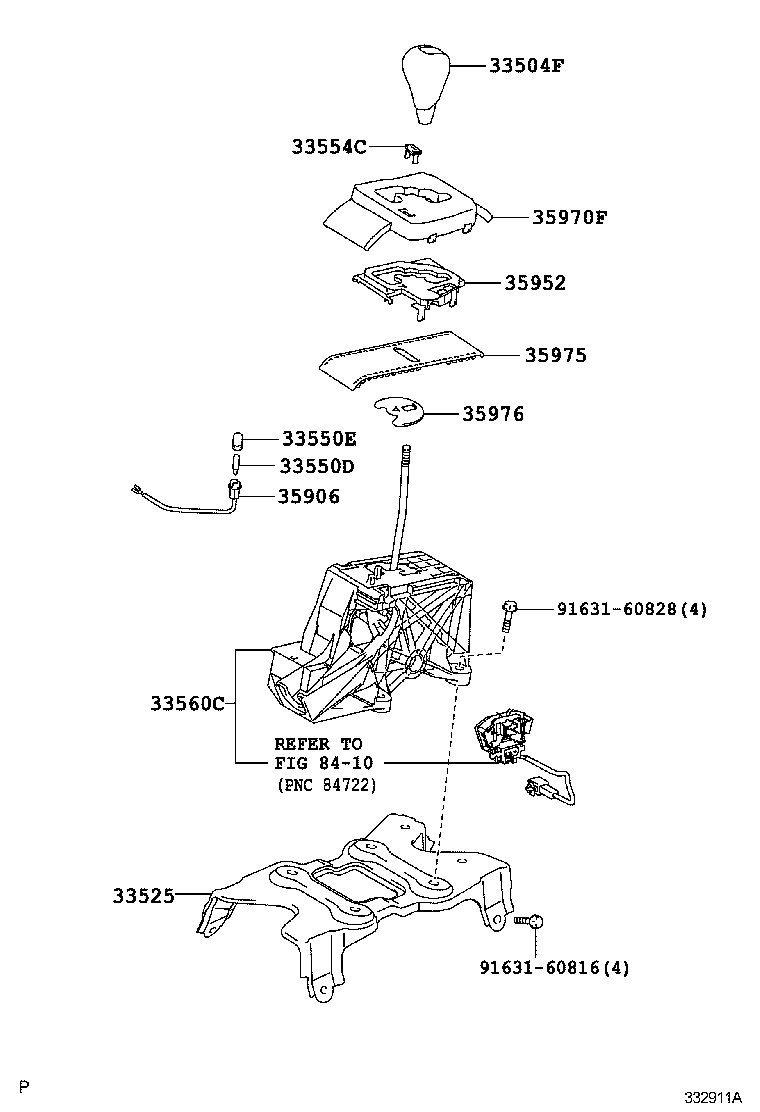

ILLUST NO. 1 OF 2(0603- )

 ES350 |  SHIFT LEVER RETAINER 33504F - KNOB SUB-ASSY, SHIFT LEVER 33525 - SUPPORT, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554C - COVER, SHIFT LOCK RELEASE BUTTON 33560C - LEVER ASSY, SHIFT, LOWER 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35952 - LENS, POSITION INDICATOR 35970F - HOUSING ASSY, POSITION INDICATOR 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) ** Refer Fig  ** Std Part  ** Std Part
