LEXUS ES350 GSV40L-BETGKA / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT STEERING GEAR LINK

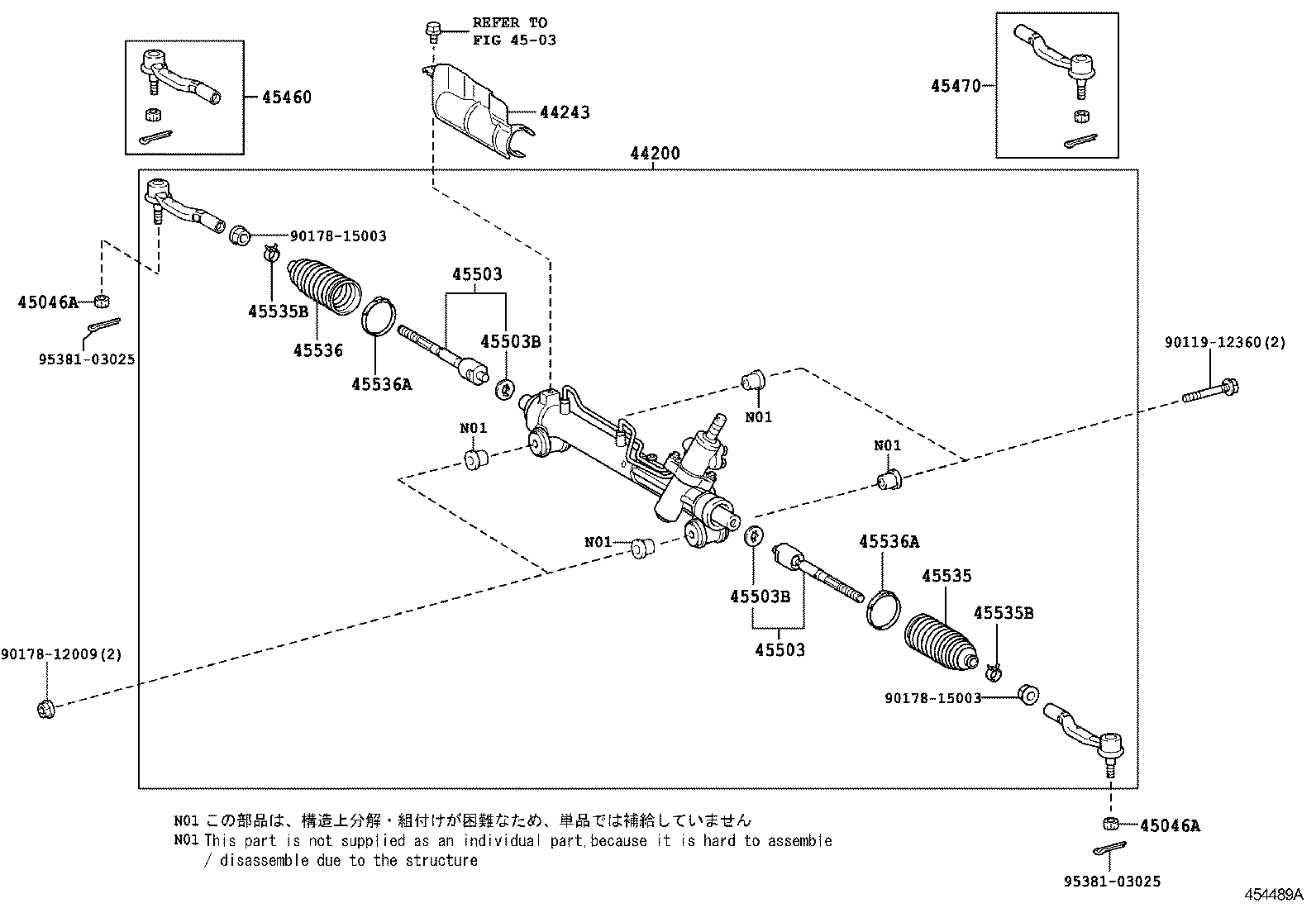

ILLUST NO. 1 OF 2(0603- )

ES350 | FRONT STEERING GEAR LINK 44200 - LINK ASSY, POWER STEERING 44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT ** Refer Fig 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45460 - ROD ASSY, TIE, RH 45470 - ROD ASSY, TIE, LH 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
