LEXUS GS30 35 43 460 URS190L-BEZQHA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 1 OF 2(0709- )URS190

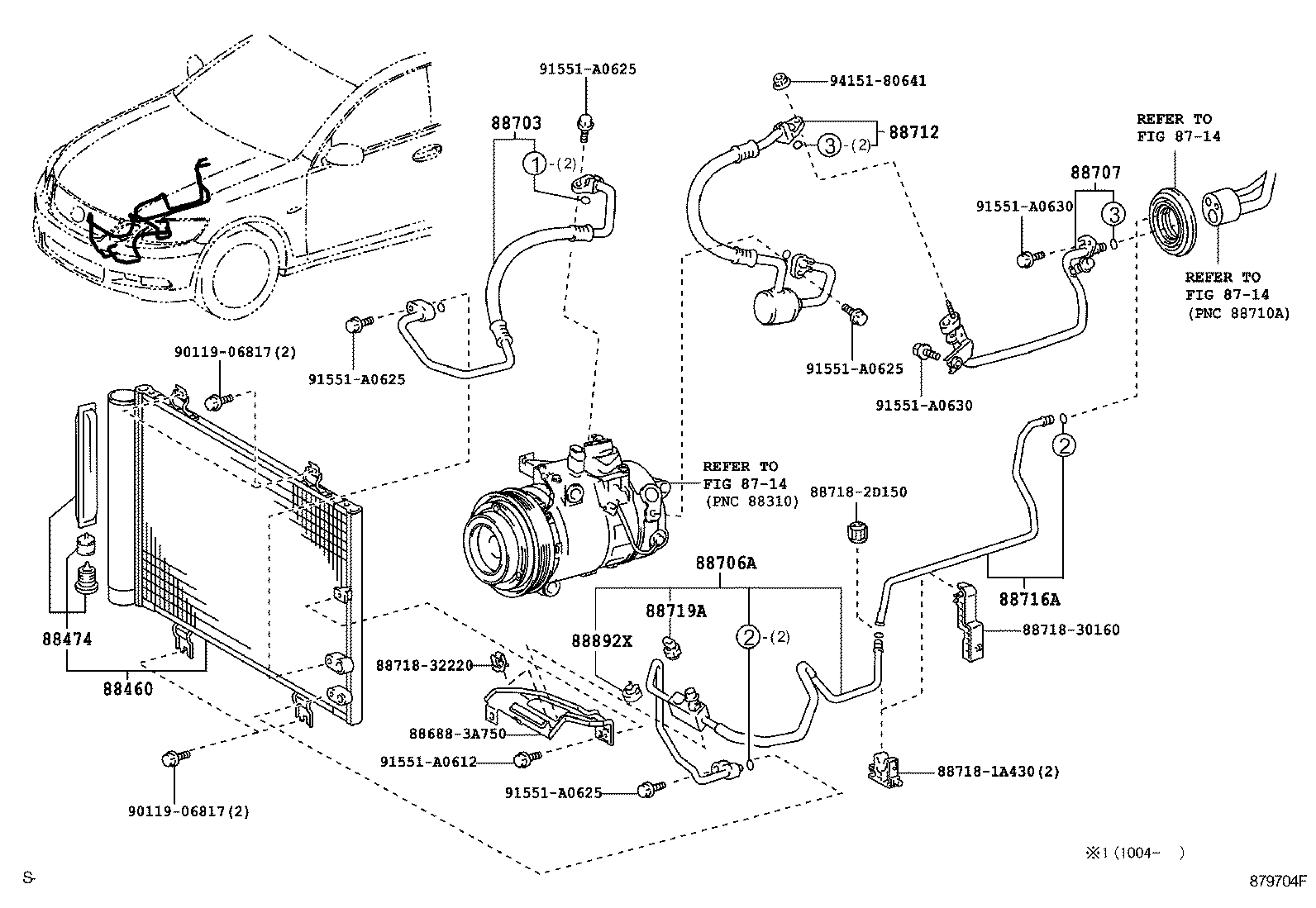

GS30 35 43 460 | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88706A - TUBE SUB-ASSY, LIQUID, A 88707 - PIPE SUB-ASSY, SUCTION 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE 88892X - COVER, COOLER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
