LEXUS RX350 450H GGL15L-CWTGKA / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

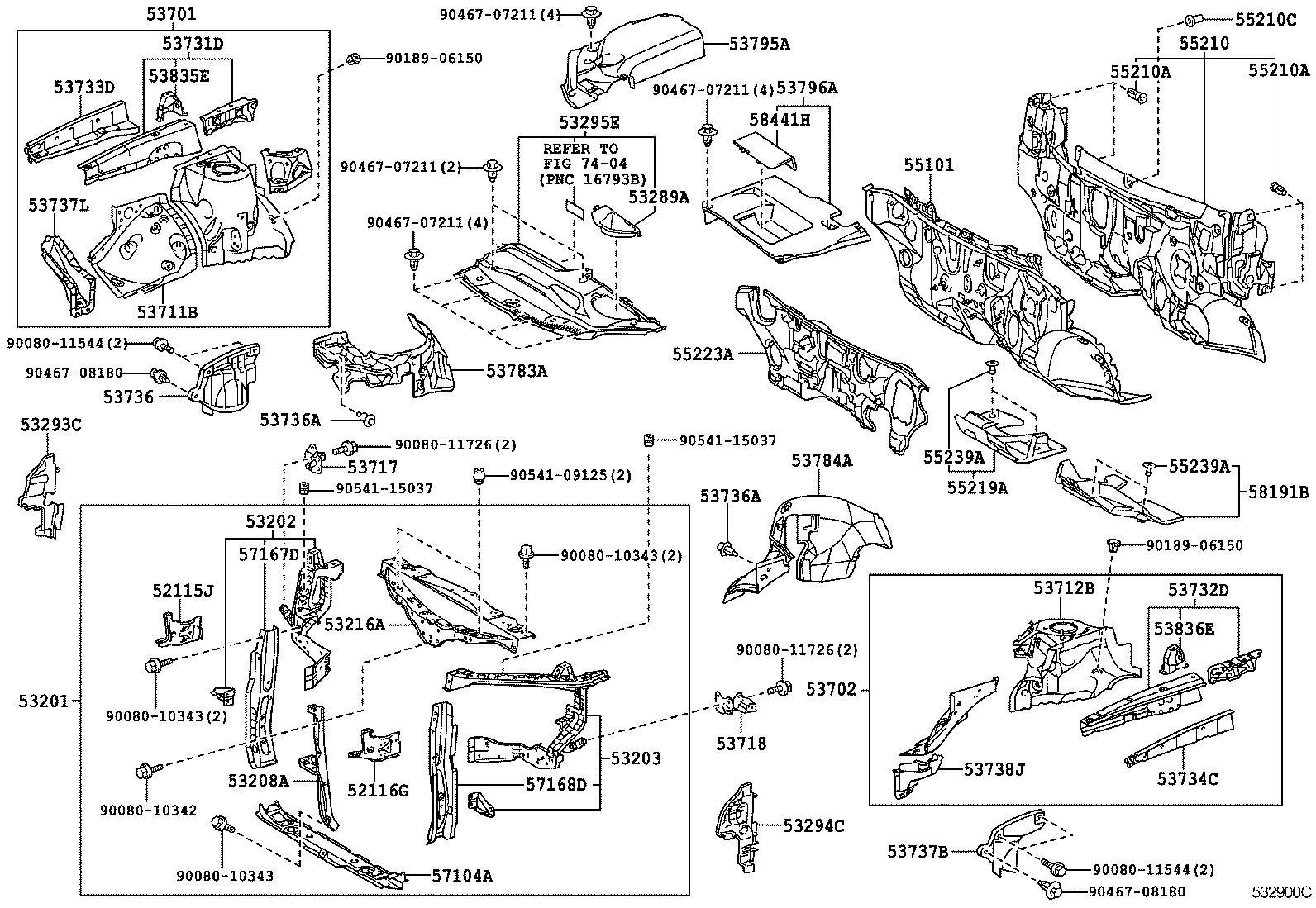

FRONT FENDER APRON DASH PANEL

(0901- )GGL1#

RX350 450H | FRONT FENDER APRON DASH PANEL 52115J - SUPPORT, FRONT BUMPER SIDE, RH 52116G - SUPPORT, FRONT BUMPER SIDE, LH 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53216A - SUPPORT, RADIATOR, UPPER 53289A - COVER, RADIATOR SUPPORT OPENING 53293C - DEFLECTOR, RADIATOR SIDE, RH 53294C - DEFLECTOR, RADIATOR SIDE, LH 53295E - SEAL, COOL AIR INTAKE DUCT 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712B - APRON, FRONT FENDER, FRONT LH 53717 - PLATE, FENDER APRON, RH 53718 - PLATE, FENDER APRON, LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 53736 - SEAL, FRONT FENDER APRON, RH 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53736A - CLIP(FOR FRONT FENDER APRON SEAL) 53737B - SEAL, FRONT FENDER APRON, LH 53737L - GUSSET, FRONT FENDER APRON WIND GUIDE, RH 53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH 53783A - INSULATOR, APRON FRONT FENDER, RH 53784A - INSULATOR, APRON FRONT FENDER, LH 53795A - COVER, ENGINE ROOM, SIDE 53796A - COVER, ENGINE ROOM SIDE, LH 53835E - BRACE, FRONT FENDER TO APRON, RH 53836E - BRACE, FRONT FENDER TO APRON, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210A - CLIP 55210C - CLIP 55219A - PACKING, DASH PANEL HOLE COVER 55223A - INSULATOR, DASH PANEL, OUTER 55239A - PLATE, DASH PANEL INSULATOR, NO.3 55239A - PLATE, DASH PANEL INSULATOR, NO.3 57104A - MEMBER SUB-ASSY, FRONT CROSS 57167D - REINFORCEMENT, FRONT CROSSMEMBER SIDE, RH 57168D - REINFORCEMENT, FRONT CROSSMEMBER SIDE, LH 58191B - FOOTREST, FR FLOOR 58441H - COVER, BATTERY SERVICE HOLE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
