LEXUS RX350 450H GGL15L-CWTGKA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

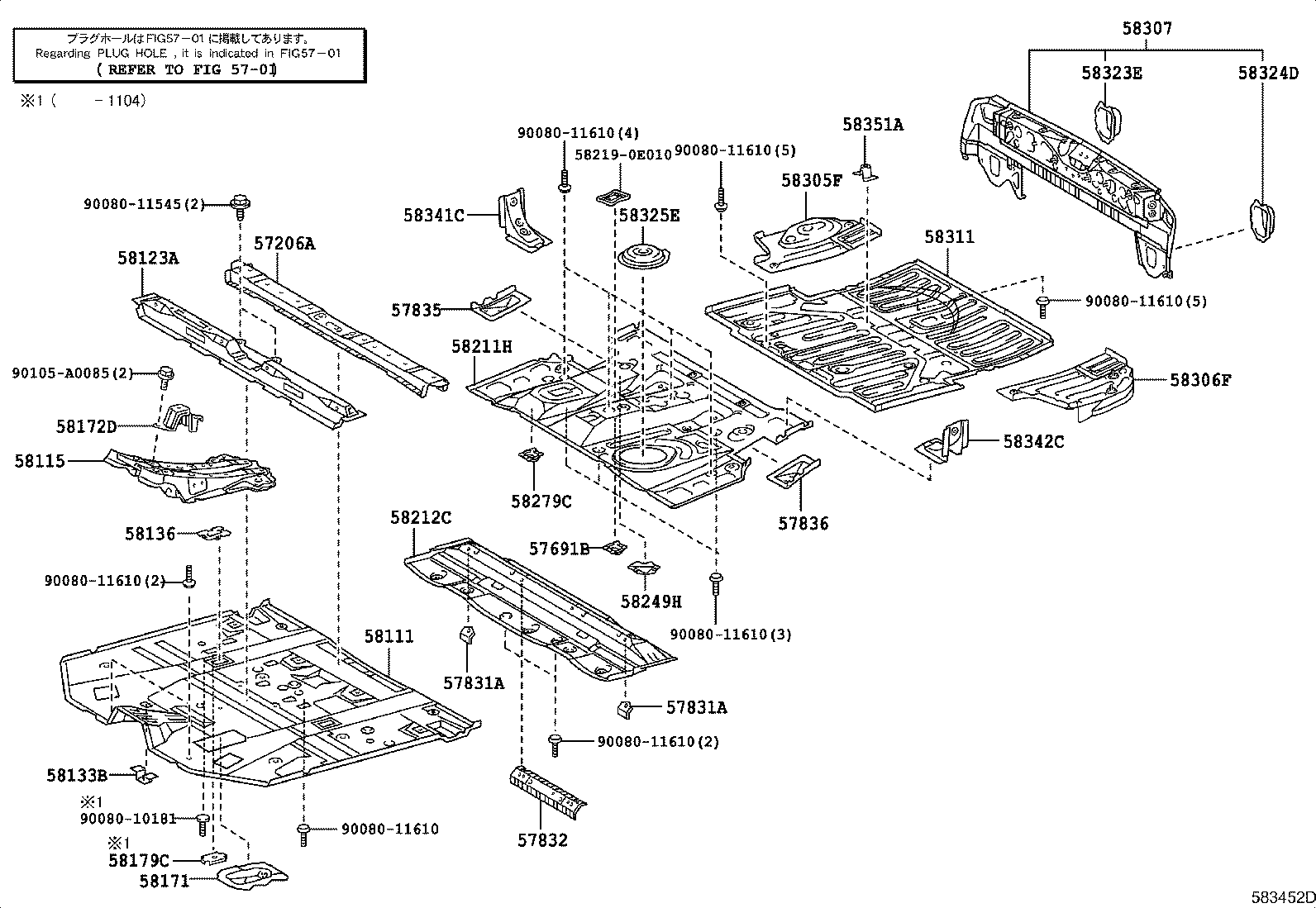

ILLUST NO. 1 OF 3(0901- )GGL1#

RX350 450H | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 57691B - BRACKET, FUEL TANK MOUNTING, FRONT CENTER 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 58111 - PAN, FRONT FLOOR 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT 58123A - SUPPORT, SHIFT & SELECT LEVER 58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172D - BRACKET, COMPUTER MOUNTING, NO.4 58179C - BRACKET, CLAMP FLOOR 58211H - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT ** Std Part 58249H - BRACKET, CENTER FLOOR BOARD SUPPORT 58279C - PROTECTOR, FUEL TANK, UPPER NO.2 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 58351A - BRACKET, SPARE WHEEL CARRIER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
