LEXUS RX350 450H GGL15L-CWTGKA / ELECTRICAL / ABS VSC

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ABS VSC

(1204- )

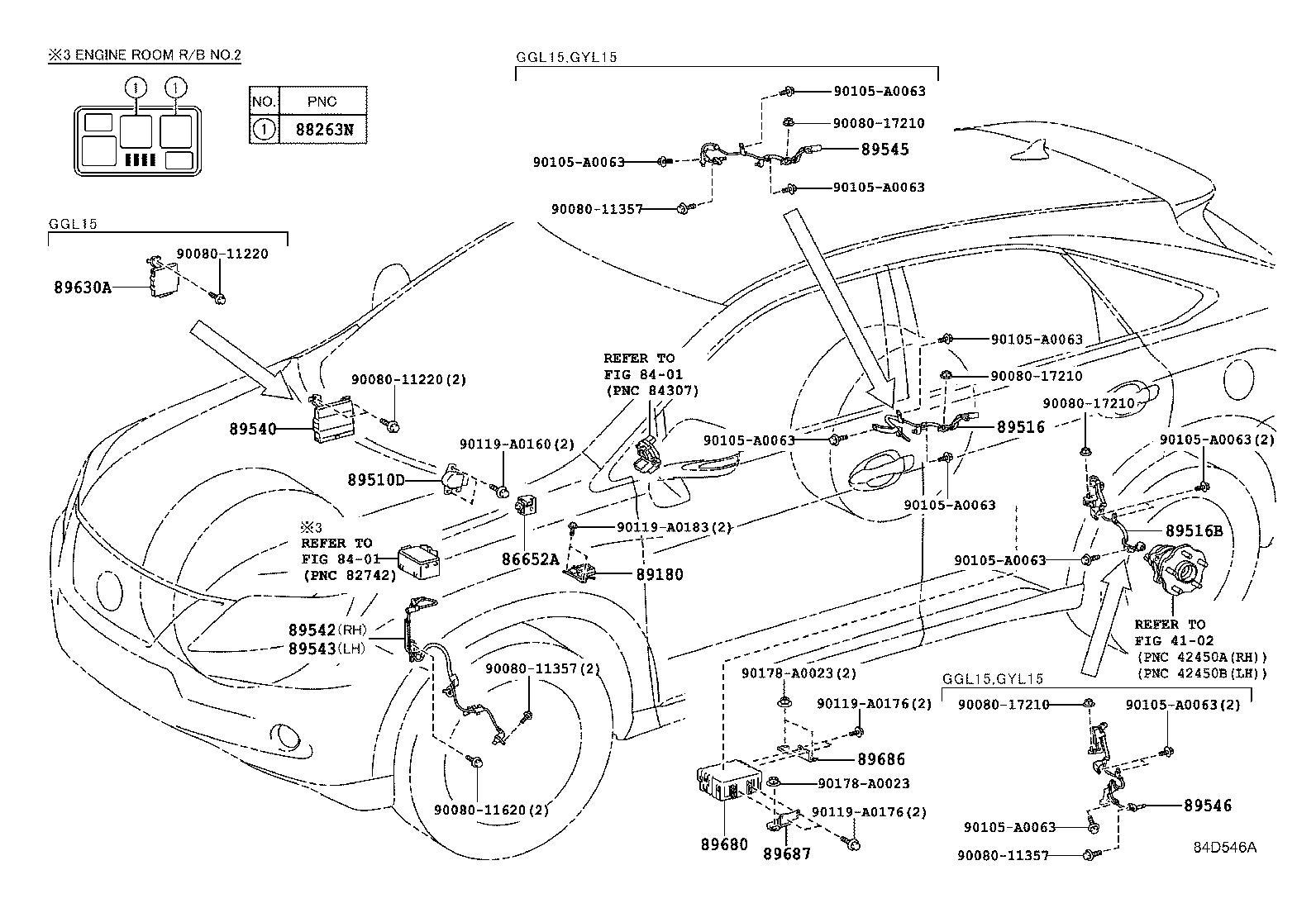

RX350 450H | ABS VSC ** Refer Fig ** Refer Fig ** Refer Fig 86652A - BUZZER ASSY, SKID CONTROL 88263N - RELAY, ABS MOTOR 89180 - SENSOR ASSY, YAWRATE 89510D - SENSOR ASSY, BRAKE PEDAL STROKE 89516 - WIRE, SKID CONTROL SENSOR 89516B - WIRE, SKID CONTROL SENSOR 89540 - COMPUTER ASSY, SKID CONTROL 89542 - SENSOR, SPEED, FRONT RH 89543 - SENSOR, SPEED, FRONT LH 89545 - SENSOR, SPEED, REAR RH 89546 - SENSOR, SPEED, REAR LH 89630A - COMPUTER ASSY, 4WD 89680 - SUPPLY ASSY, BRAKE CONTROL POWER 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
