LEXUS RX350 450H GGL15L-CWTGKA / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

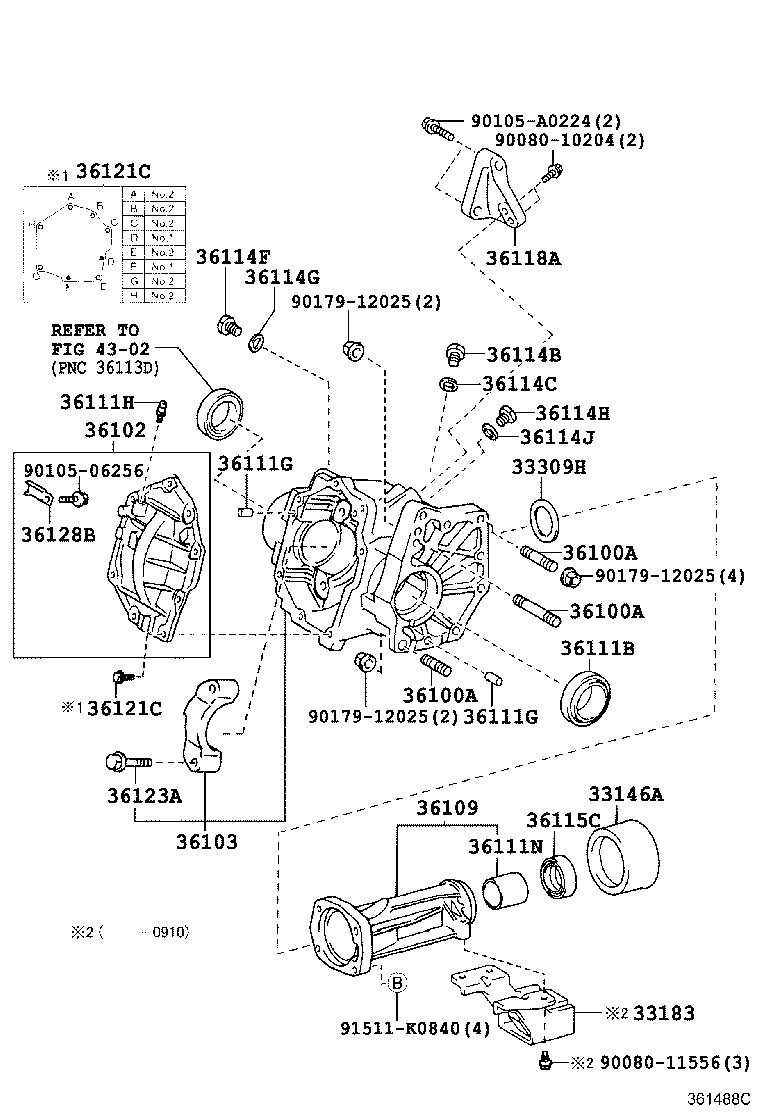

TRANSFER CASE EXTENSION HOUSING

(0901- )GGL15

RX350 450H | TRANSFER CASE EXTENSION HOUSING 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST 33183 - DAMPER, TRANSFER DYNAMIC 33309H - WASHER, TRANSFER OUTPUT SHAFT 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) 36102 - COVER SUB-ASSY, TRANSFER CASE 36103 - CASE SUB-ASSY, TRANSFER 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION 36111B - SEAL, OIL (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) 36111H - PLUG, BREATHER (FOR TRANSFER CASE) 36111N - BUSH (FOR TRANSFER CASE) 36114B - PLUG, NO.1 (FOR TRANSFER CASE) 36114C - GASKET, NO.1 (FOR TRANSFER CASE) 36114F - PLUG (FOR TRANSFER DRAIN) 36114G - GASKET (FOR TRANSFER DRAIN PLUG) 36114H - PLUG, NO.2 (FOR TRANSFER CASE) 36114J - GASKET, NO.2 (FOR TRANSFER CASE) 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) 36118A - PLATE, TRANSFER STIFFENER, RH 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER) 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER) 36123A - BOLT, DIFFERENTIAL BEARING CAP 36128B - DEFLECTOR, BREATHER OIL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
