LEXUS RX350 450H GGL15L-CWTGKA / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

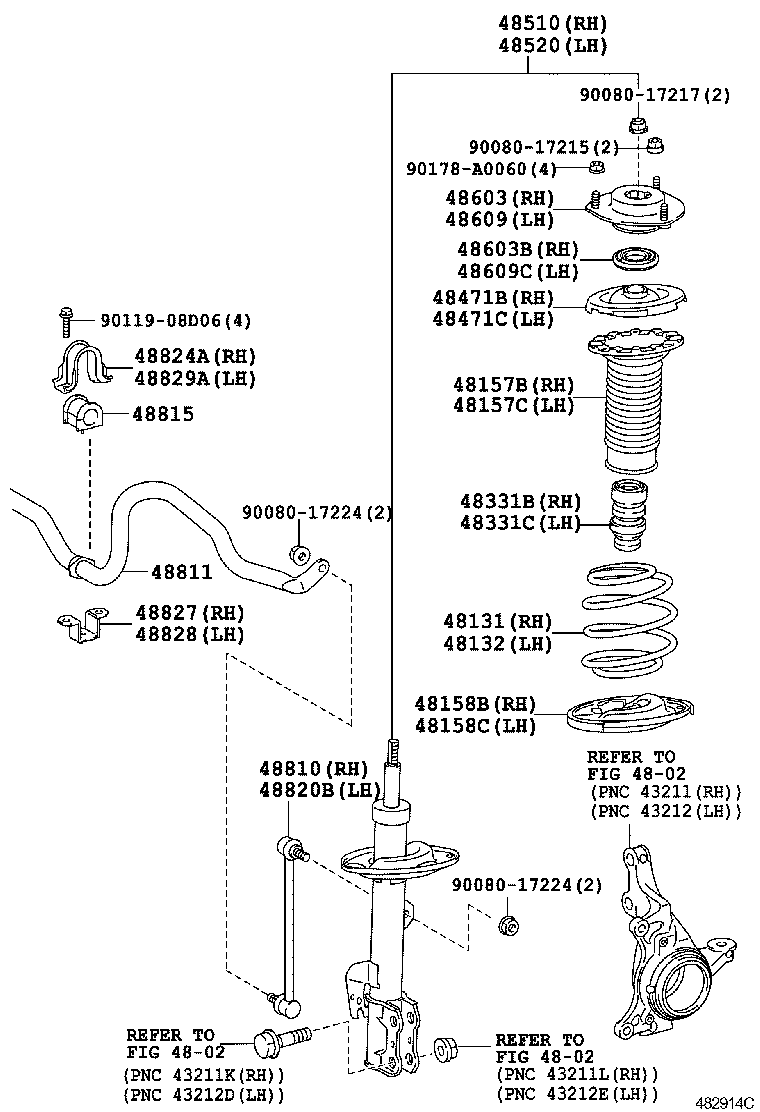

FRONT SPRING SHOCK ABSORBER

(0901- )

RX350 450H | FRONT SPRING SHOCK ABSORBER ** Refer Fig ** Refer Fig ** Refer Fig 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH 48331B - BUMPER, FRONT SPRING, RH 48331C - BUMPER, FRONT SPRING, LH 48471B - SEAT, FRONT COIL SPRING, UPPER RH 48471C - SEAT, FRONT COIL SPRING, UPPER LH 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) 48810 - LINK ASSY, FRONT STABILIZER, LH 48811 - BAR, STABILIZER, FRONT 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48820B - LINK ASSY, FRONT STABILIZER, RH 48824A - BRACKET, FRONT STABILIZER, NO.1 RH 48827 - BRACKET, FRONT STABILIZER, NO.2 RH 48828 - BRACKET, FRONT STABILIZER, NO.2 LH 48829A - BRACKET, FRONT STABILIZER, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
