TOYOTA LAND CRUISER 40 45 55 FJ43- / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

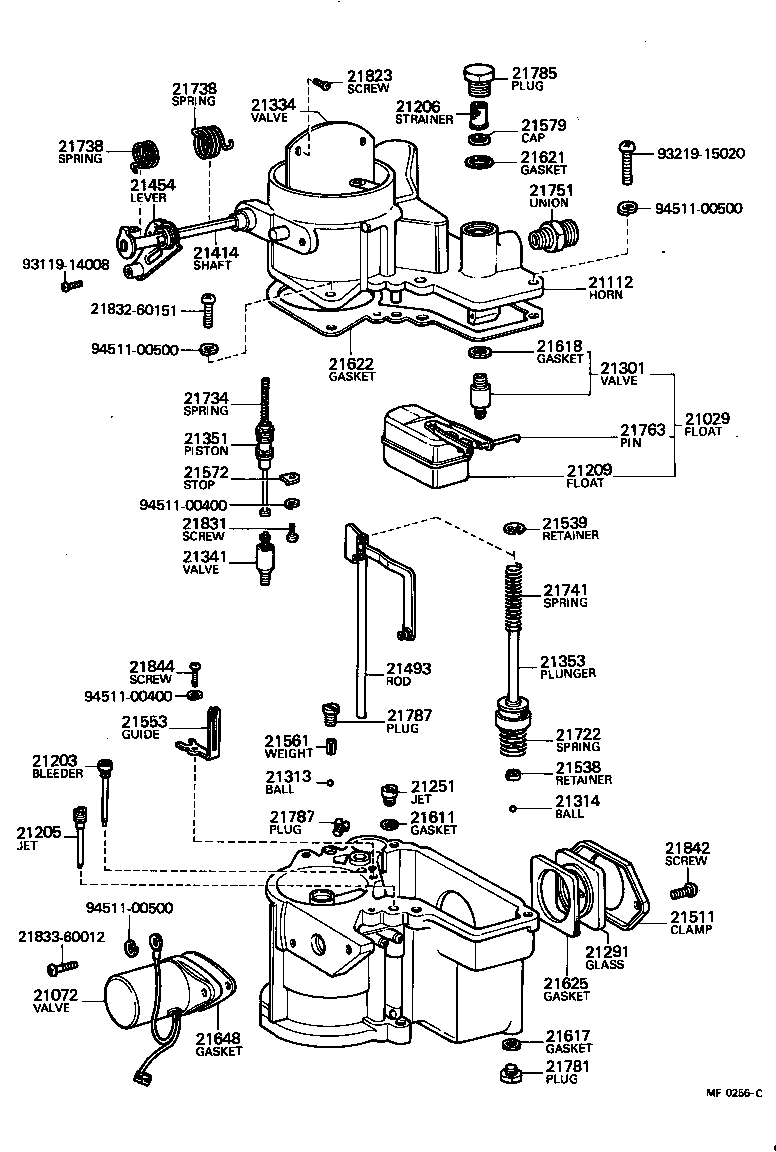

CARBURETOR

(6903-6909)

LAND CRUISER 40 45 55 | CARBURETOR 21029 - FLOAT & NEEDLE SUB-ASSY 21072 - VALVE SUB-ASSY, SLOW 21112 - HORN, AIR 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR 21205 - JET SUB-ASSY, SLOW 21206 - STRAINER SUB-ASSY 21209 - FLOAT SUB-ASSY 21251 - JET, 1ST MAIN 21291 - GLASS, LEVEL GAGE 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21334 - VALVE, CHOKE 21341 - VALVE, POWER 21351 - PISTON, POWER 21353 - PLUNGER, PUMP 21414 - SHAFT, CHOKE 21454 - LEVER, CHOKE 21493 - ROD, LIFTER 21511 - CLAMP, LEVEL GAGE 21538 - RETAINER, BALL CHECK 21539 - RETAINER, PUMP SPRING 21553 - GUIDE 21561 - WEIGHT, PUMP DISCHARGE 21572 - STOP, POWER PISTON 21579 - CAP, STRAINER 21611 - GASKET, MAIN JET 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21625 - GASKET, LEVEL GAGE 21648 - PACKING(FOR SLOW VALVE COVER) 21722 - SPRING, PUMP DAMPING 21734 - SPRING, POWER PISTON 21738 - SPRING, CHOKE VALVE RELIEF 21738 - SPRING, CHOKE VALVE RELIEF 21741 - SPRING, PUMP 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21785 - PLUG, CARBURETOR FUEL INLET STRAINER 21787 - PLUG, PUMP JET 21787 - PLUG, PUMP JET 21823 - SCREW, CHOKE, VALVE SET 21831 - SCREW, POWER PISTON STOP ** Std Part ** Std Part 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) 21844 - SCREW, CHOKE LEVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
