TOYOTA HILUX RN22-HD / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

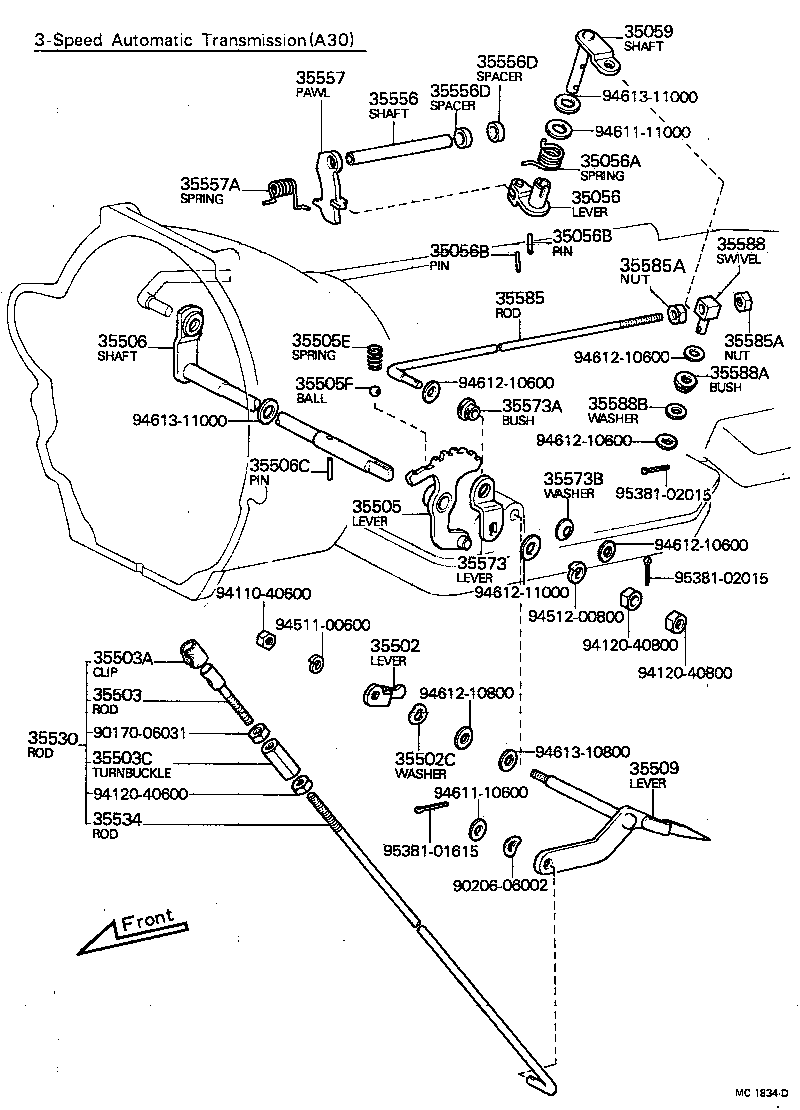

THROTTLE LINK VALVE LEVER ATM

(7404-7708)ATM

HILUX | THROTTLE LINK VALVE LEVER ATM 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER 35056A - SPRING, PARKING LOCK LEVER 35056B - PIN, PARKING LOCK LEVER 35056B - PIN, PARKING LOCK LEVER 35059 - SHAFT SUB-ASSY, PARKING LOCK 35502 - LEVER SUB-ASSY, THROTTLE VALVE 35502C - WASHER, WAVE (FOR THROTTLE VALVE INNER LEVER) 35503 - ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) 35503C - TURNBUCKLE(FOR THROTTLE LINK CONNECTING ROD) 35505 - LEVER SUB-ASSY, MANUAL VALVE 35505E - SPRING, COMPRESSION (FOR MANUAL VALVE LEVER) 35505F - BALL (FOR MANUAL VALVE LEVER) 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) 35509 - LEVER SUB-ASSY, THROTTLE VALVE, OUTER 35530 - ROD ASSY, THROTTLE LINK 35534 - ROD, THROTTLE LINK CONNECTING, 1ST 35556 - SHAFT, PARKING LOCK PAWL 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) 35557 - PAWL, PARKING LOCK 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH 35573A - BUSH (FOR TRANSMISSION CONTROL SHAFT LEVER) 35573B - WASHER (FOR TRANSMISSION CONTROL SHAFT LEVER SETTING) 35585 - ROD, PARKING LOCK 35585A - NUT (FOR PARKING LOCK ROD SETTING) 35585A - NUT (FOR PARKING LOCK ROD SETTING) 35588 - SWIVEL, PARKING LOCK ROD 35588A - BUSH (FOR PARKING LOCK ROD SWIVEL) 35588B - WASHER (FOR PARKING LOCK ROD SWIVEL) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
