TOYOTA LAND CRUISER 40 45 55 BJ40RV-KC / TOOL-ENGINE-FUEL / FUEL FEED PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

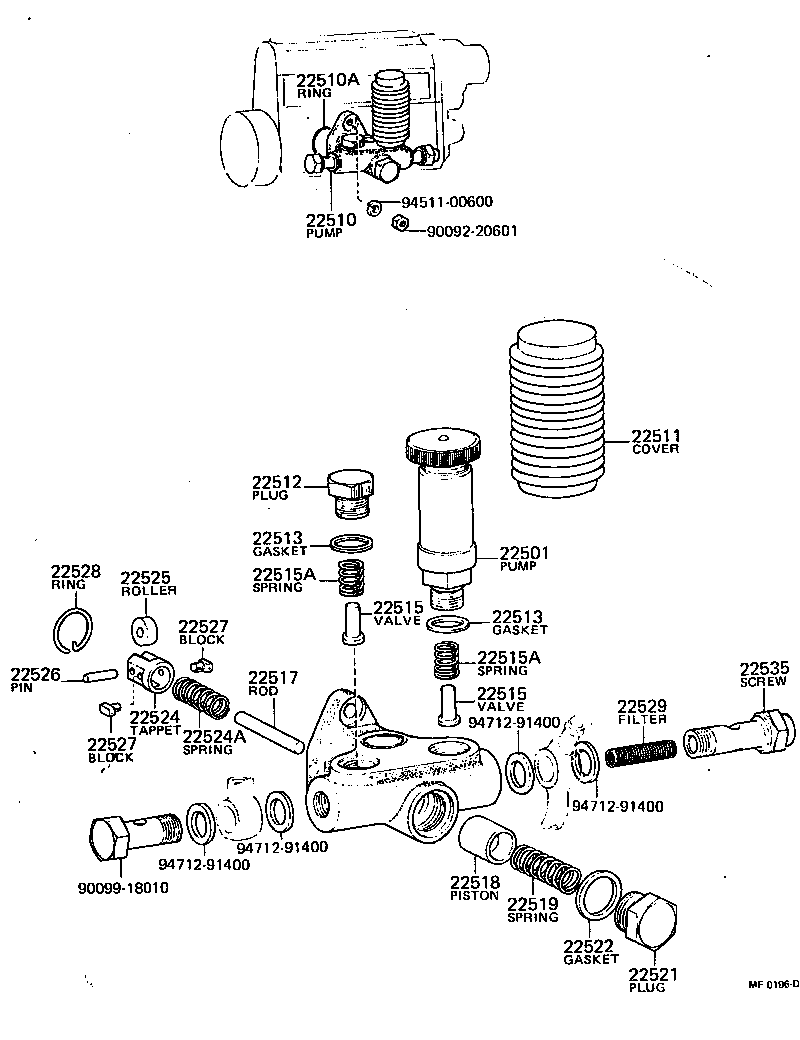

FUEL FEED PUMP

(7402-7709)B

LAND CRUISER 40 45 55 | FUEL FEED PUMP 22501 - PUMP SUB-ASSY, PRIMING 22510 - PUMP ASSY, FUEL FEED 22510A - RING, O(FOR FUEL FEED PUMP) 22511 - COVER, PRIMING PUMP 22512 - PLUG, FEED PUMP CHECK VALVE CHAMBER 22513 - GASKET, CHECK VALVE CHAMBER PLUG 22513 - GASKET, CHECK VALVE CHAMBER PLUG 22515 - VALVE, FEED PUMP CHECK 22515 - VALVE, FEED PUMP CHECK 22515A - SPRING, FEED PUMP CHECK VALVE 22515A - SPRING, FEED PUMP CHECK VALVE 22517 - ROD, FEED PUMP PUSH 22518 - PISTON, FEED PUMP 22519 - SPRING, FEED PUMP PISTON 22521 - PLUG, FEED PUMP PISTON CHAMBER 22522 - GASKET, FEED PUMP PISTON PLUG 22524 - TAPPET, FEED PUMP 22524A - SPRING, FEED PUMP TAPPET 22525 - ROLLER, FEED PUMP TAPPET 22526 - PIN, FEED PUMP TAPPET ROLLER 22527 - BLOCK, FEED PUMP TAPPET SLIDING 22527 - BLOCK, FEED PUMP TAPPET SLIDING 22528 - RING, FEED PUMP TAPPET SNAP 22529 - FILTER, FUEL PUMP 22535 - SCREW, FUEL PIPE FOLLOW ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
