TOYOTA LAND CRUISER 40 45 55 HJ45LP-KW / POWERTRAIN-CHASSIS / TRANSFER GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER GEAR

(6903-8007)

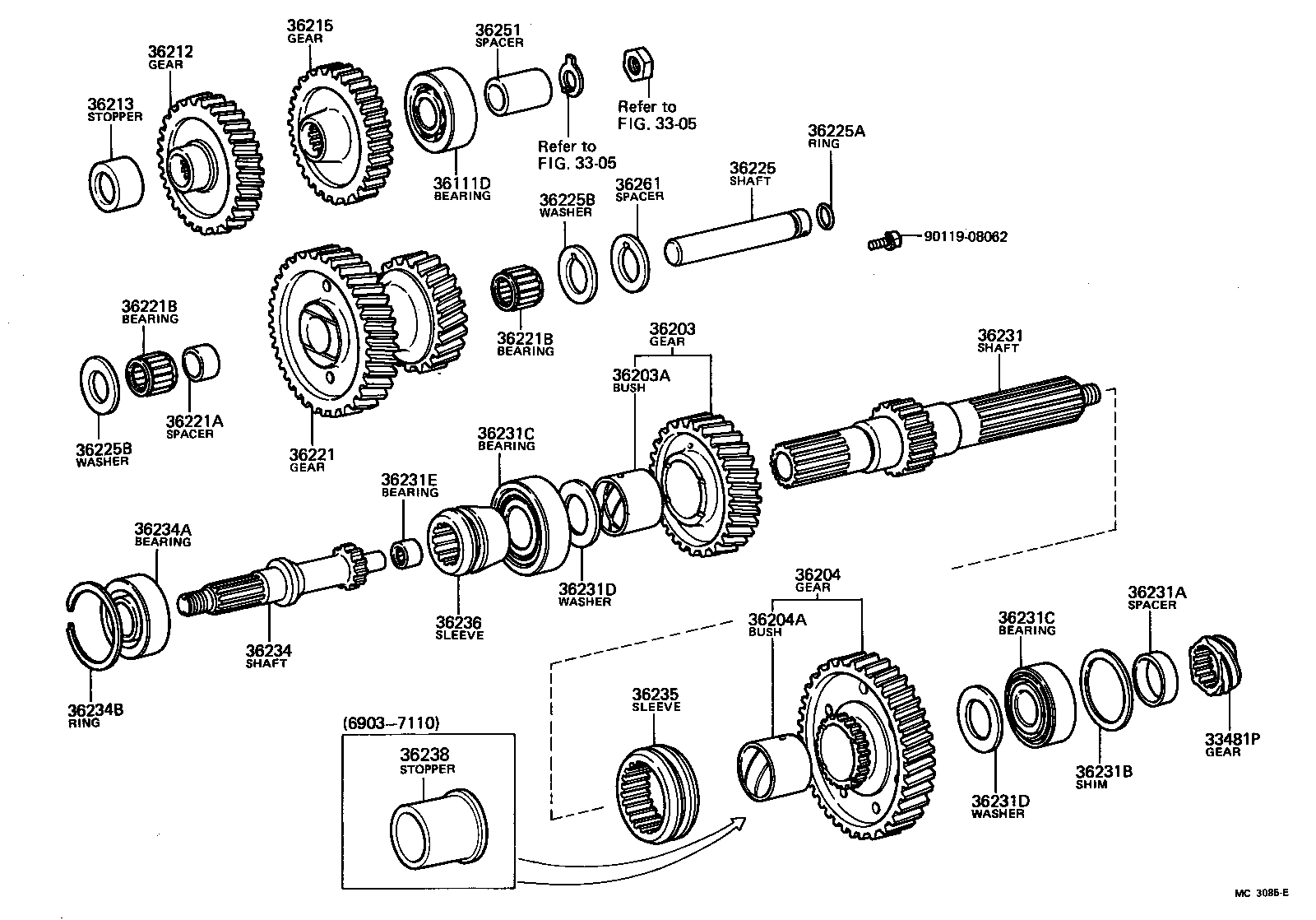

LAND CRUISER 40 45 55 | TRANSFER GEAR ** Refer Fig ** Refer Fig 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) 36111D - BEARING, TRANSFER REAR AND IDLER SHAFT 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT 36203A - BUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR) 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT 36204A - BUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR) 36212 - GEAR, TRANSFER INPUT 36213 - STOPPER, TRANSFER INPUT GEAR 36215 - GEAR, POWER TAKE-OFF DRIVE 36221 - GEAR, TRANSFER IDLER 36221A - SPACER(FOR TRANSFER IDLER GEAR) 36221B - BEARING (FOR TRANSFER IDLER GEAR) 36221B - BEARING (FOR TRANSFER IDLER GEAR) 36225 - SHAFT, TRANSFER IDLER GEAR 36225A - RING, O (FOR TRANSFER IDLER SHAFT) 36225B - WASHER (FOR TRANSFER IDLER SHAFT) 36225B - WASHER (FOR TRANSFER IDLER SHAFT) 36231 - SHAFT, TRANSFER OUTPUT, REAR 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) 36234 - SHAFT, TRANSFER OUTPUT, FRONT 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH 36236 - SLEEVE, FRONT DRIVE CLUTCH 36238 - STOPPER, TRANSFER HIGH & LOW CLUTCH SLEEVE 36251 - SPACER, TRANSFER INPUT SHAFT 36261 - SPACER, TRANSFER IDLER GEAR ** Std Part
