TOYOTA CRESSIDA RX35L-WHDC / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

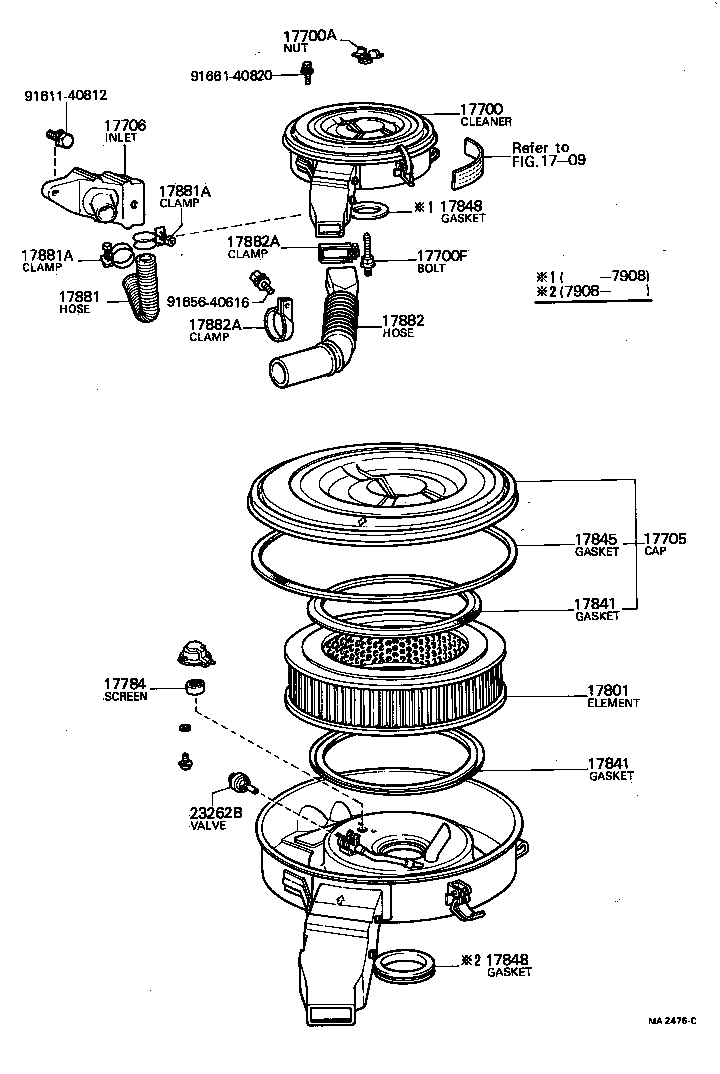

AIR CLEANER

(7707-8008)18RC

 CRESSIDA |  AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) 17705 - CAP SUB-ASSY, AIR CLEANER 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 17784 - SCREEN, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17848 - GASKET, AIR CLEANER TO CARBURETOR 17848 - GASKET, AIR CLEANER TO CARBURETOR 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 23262B - VALVE, BIMETAL VACUUM SWITCHING, NO.1  ** Std Part  ** Std Part  ** Std Part
