TOYOTA HIACE RH30LV-JRFE / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

(7912- )RH20..RHD..V4D..03S..GEN ; (7912-

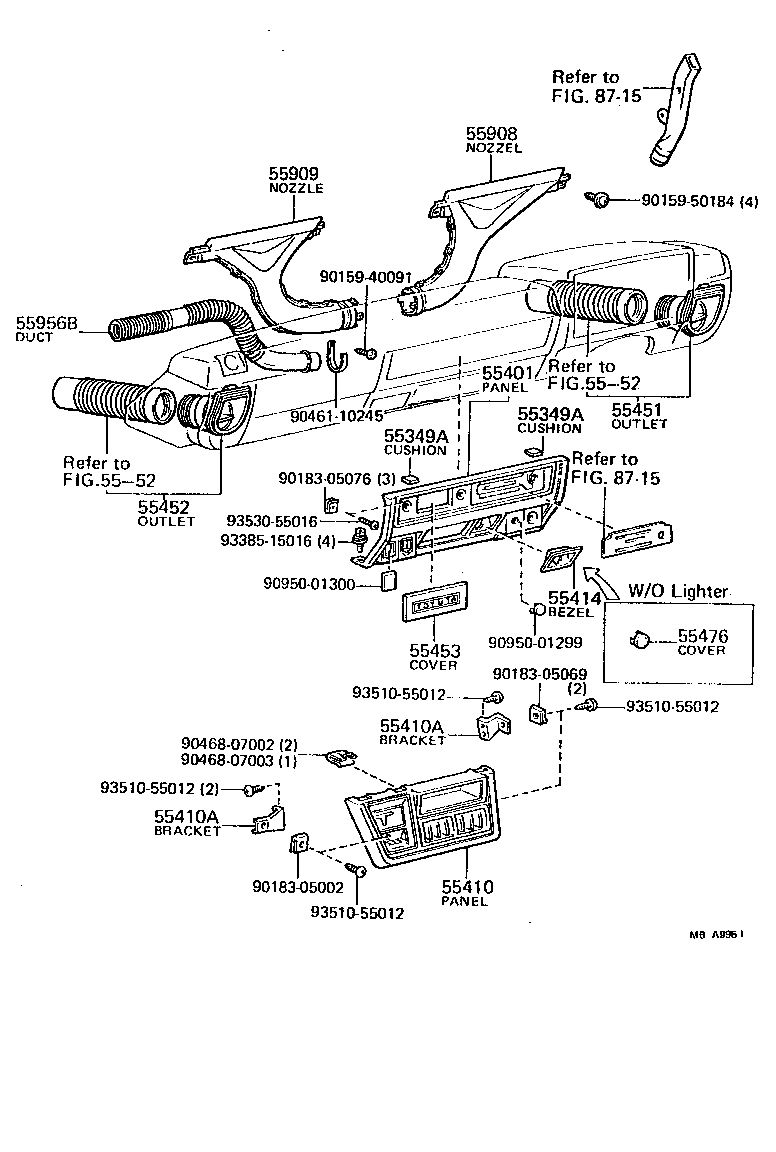

 HIACE |  FRAME 55349A - CUSHION, INSTRUMENT PANEL 55349A - CUSHION, INSTRUMENT PANEL 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55414 - BEZEL, CIGAR LIGHTER HOLE 55451 - OUTLET, AIR OUTER, RH 55452 - OUTLET, AIR OUTER, LH 55453 - COVER, RADIO TUNER OPENING 55476 - COVER, CIGARETTE LIGHTER HOLE ** Refer Fig ** Refer Fig 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
