TOYOTA CELICA RA61R-BLMSSW / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

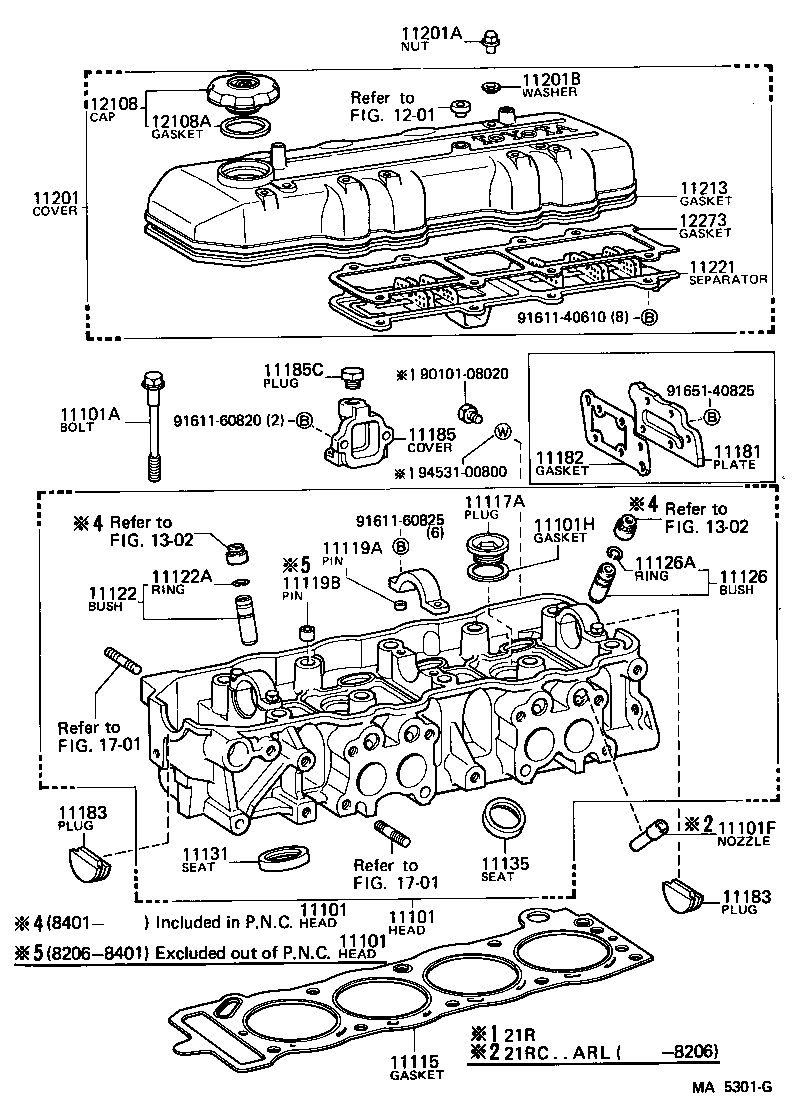

CYLINDER HEAD

(8108-8206)21R# ; (8206-8408)21R#..EUR,GEN,ME,SA

 CELICA |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101 - HEAD SUB-ASSY, CYLINDER 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101F - NOZZLE, AIR INJECTION 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11115 - GASKET, CYLINDER HEAD 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11119A - PIN, STRAIGHT, NO.1 11119B - PIN, STRAIGHT, NO.2 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11183 - PLUG, SEMICIRCULAR 11183 - PLUG, SEMICIRCULAR 11185 - COVER, CYLINDER HEAD SIDE 11185C - PLUG, CYLINDER HEAD SIDE COVER 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 ** Refer Fig 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12273 - GASKET, OIL SEPARATOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
