TOYOTA DYNA BU40R-MRDT / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

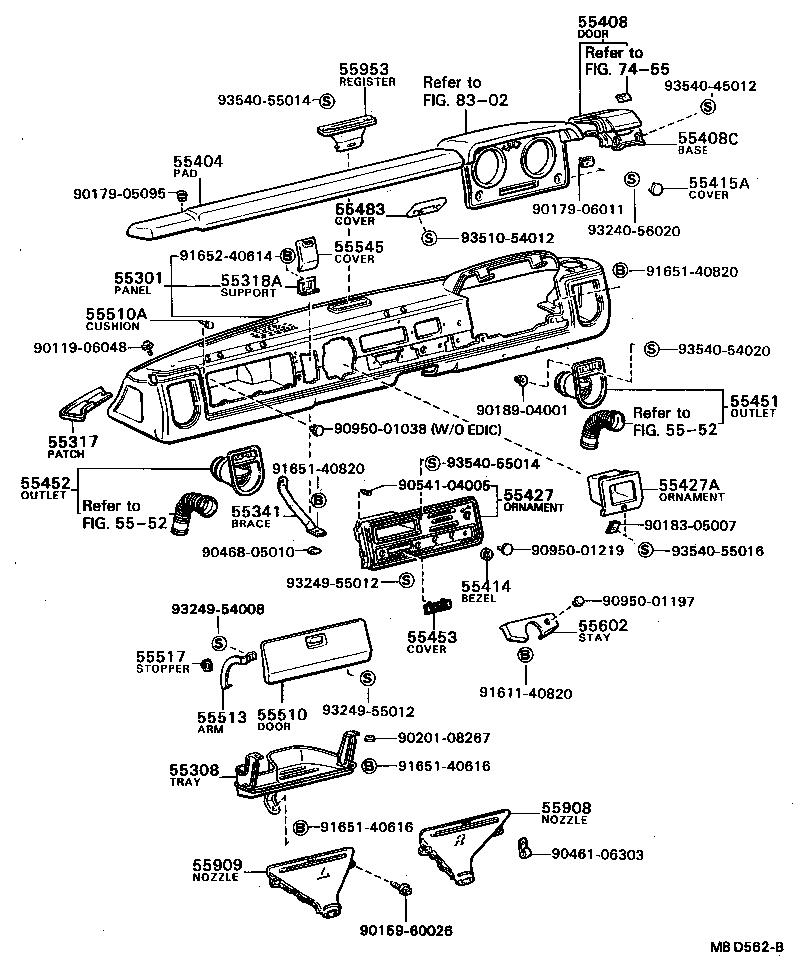

INSTRUMENT PANEL GLOVE COMPARTMENT

(8204-8408)BU36,40,HU40,50,WU40..RHD

 DYNA |  INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER 55317 - PATCH, INSTRUMENT PANEL 55318A - SUPPORT, FUSE BOX 55341 - BRACE, INSTRUMENT PANEL, NO.1 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER 55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR 55414 - BEZEL, CIGAR LIGHTER HOLE 55415A - COVER, METER HOOD 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER 55427A - ORNAMENT SUB-ASSY, CENTER ACCESSORY 55451 - OUTLET, AIR OUTER, RH 55452 - OUTLET, AIR OUTER, LH 55453 - COVER, RADIO TUNER OPENING 55483 - COVER, HEATER INGICATOR LAMP 55510 - DOOR ASSY, GLOVE COMPARTMENT 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) 55513 - ARM, GLOVE COMPARTMENT DOOR CHECK 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM ** Refer Fig ** Refer Fig 55545 - COVER, FUSE BOX OPENING 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH 55953 - REGISTER, DEFROSTER, CENTER ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
