TOYOTA DYNA BU40R-MRDT / BODY / REAR BODY FLOOR FENDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

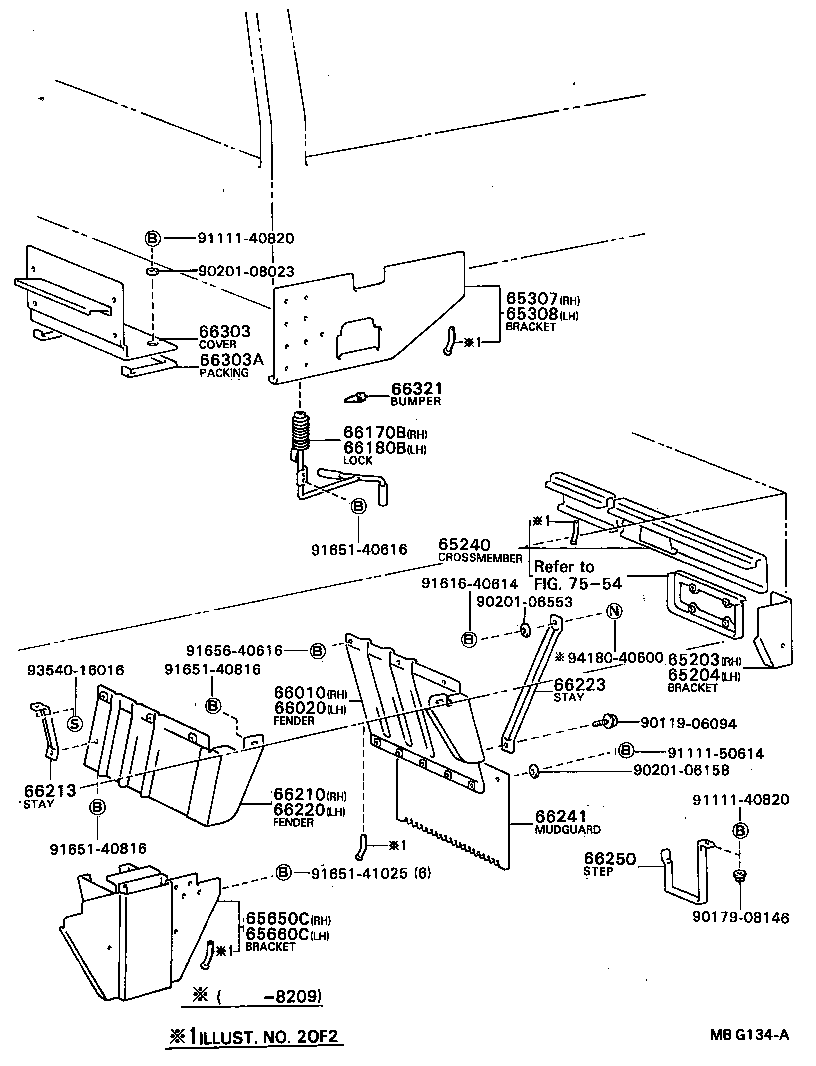

REAR BODY FLOOR FENDER

(8204-8408)BU40,HU40,50,WU40

 DYNA |  REAR BODY FLOOR FENDER 65203 - BRACKET SUB-ASSY, GATE BUMPER, RH 65204 - BRACKET SUB-ASSY, GATE BUMPER, LH 65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL 65307 - BRACKET SUB-ASSY, GUAD FRAME, RH 65308 - BRACKET SUB-ASSY, GUAD FRAME, LH 65650C - BRACKET ASSY, CENTER COLUMN, RH 65660C - BRACKET ASSY, CENTER COLUMN, LH 66010 - FENDER ASSY, REAR BODY, REAR RH 66020 - FENDER ASSY, REAR BODY, REAR LH 66170B - LOCK ASSY, SIDE GATE, RH 66180B - LOCK ASSY, SIDE GATE, LH 66210 - FENDER ASSY, REAR BODY, FRONT RH 66213 - STAY, REAR FENDER FRONT PLATE 66220 - FENDER ASSY, REAR BODY, FRONT LH 66223 - STAY, REAR FENDER REAR PLATE 66241 - MUDGUARD, REAR 66250 - STEP ASSY, REAR 66303 - COVER SUB-ASSY, ENGINE SERVICE HOLE 66303A - PACKING, ENGINE SERVICE HOLE COVER 66321 - BUMPER, GATE RUBBER ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
