TOYOTA DYNA YU60R-MDBT / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

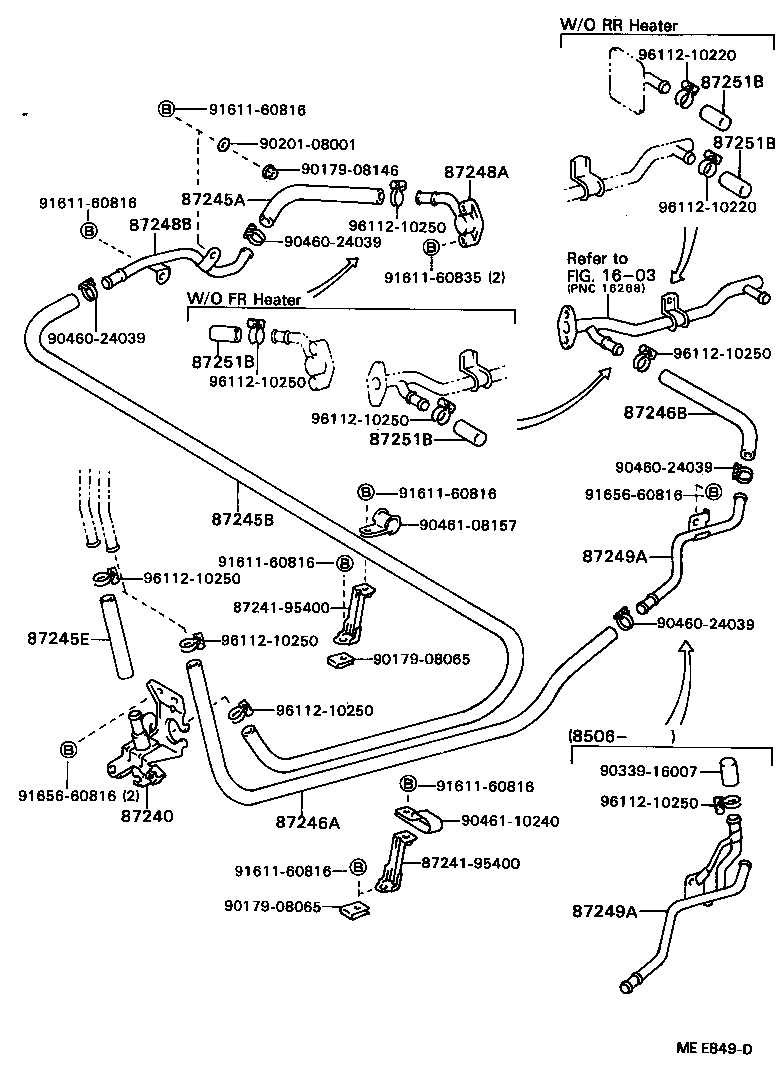

HEATING AIR CONDITIONING WATER PIPING

(8409- )YU60,62,8#..RHD

 DYNA |  HEATING AIR CONDITIONING WATER PIPING ** Refer Fig 87240 - VALVE ASSY, HEATER WATER  ** Std Part  ** Std Part 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245E - HOSE, HEATER WATER, INLET E 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87249A - PIPE, HEATER WATER OUTLET, A 87249A - PIPE, HEATER WATER OUTLET, A 87251B - PLUG, HEATER WATER 87251B - PLUG, HEATER WATER 87251B - PLUG, HEATER WATER 87251B - PLUG, HEATER WATER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
