TOYOTA TERCEL AL20R-ZHMDSW / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

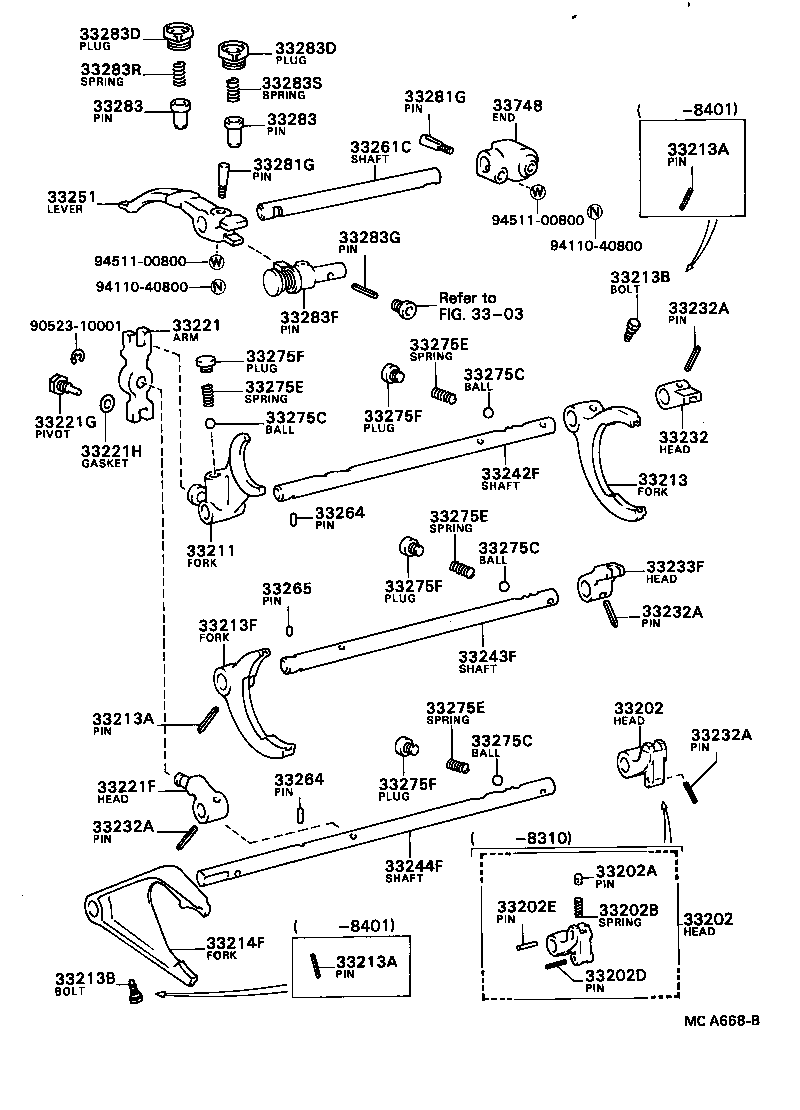

GEAR SHIFT FORK LEVER SHAFT MTM

(8205-8408)5F

 TERCEL |  GEAR SHIFT FORK LEVER SHAFT MTM ** Refer Fig 33202 - HEAD SUB-ASSY, REVERSE SHIFT 33202 - HEAD SUB-ASSY, REVERSE SHIFT 33202A - PIN, REVERSE RESTRICT, NO.2 33202B - SPRING, COMPRESSION, NO.1(FOR REVERSE RESTRICT PIN) 33202D - PIN, SLOTTED SPRING(FOR REVERSE RESTRICT) 33202E - PIN, STRAIGHT(FOR REVERSE RESTRICT) 33211 - FORK, REVERSE SHIFT 33213 - FORK, 1ST & 2ND SHIFT 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213B - BOLT(FOR SHIFT FORK SET) 33213F - FORK, 3RD & 4TH SHIFT 33214F - FORK, 5TH SHIFT 33221 - ARM, REVERSE SHIFT 33221F - HEAD, REVERSE SHIFT ARM 33221G - PIVOT, REVERSE SHIFT ARM 33221H - GASKET(FOR PIVOT REVERSE SHIFT ARM) 33232 - HEAD, 1ST & 2ND SHIFT 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) 33233F - HEAD, 3RD & 4TH SHIFT 33242F - SHAFT , 1ST & 2ND SHIFT FORK 33243F - SHAFT , 3RD & 4TH SHIFT FORK 33244F - SHAFT,5TH & REVERSE SHIFT 33251 - LEVER, SHIFT & SELECT 33261C - SHAFT, SHIFT & SELECT LEVER 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 33265 - PIN, SHIFT INTER LOCK, NO.2 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275C - BALL (FOR SHIFT DETENT) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33275F - PLUG (FOR SHIFT DETENT BALL) 33281G - PIN, LEVER LOCK 33281G - PIN, LEVER LOCK 33283 - PIN, REVERSE RESTRICT, NO.1 33283 - PIN, REVERSE RESTRICT, NO.1 33283D - PLUG (FOR REVERSE RESTRICT PIN) 33283D - PLUG (FOR REVERSE RESTRICT PIN) 33283F - PIN, REVERSE RESTRICT 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) 33283R - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH) 33283S - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH) 33748 - END, GEAR SHIFTING ROD  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
