TOYOTA DYNA100 LH80L-MDBW3 / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

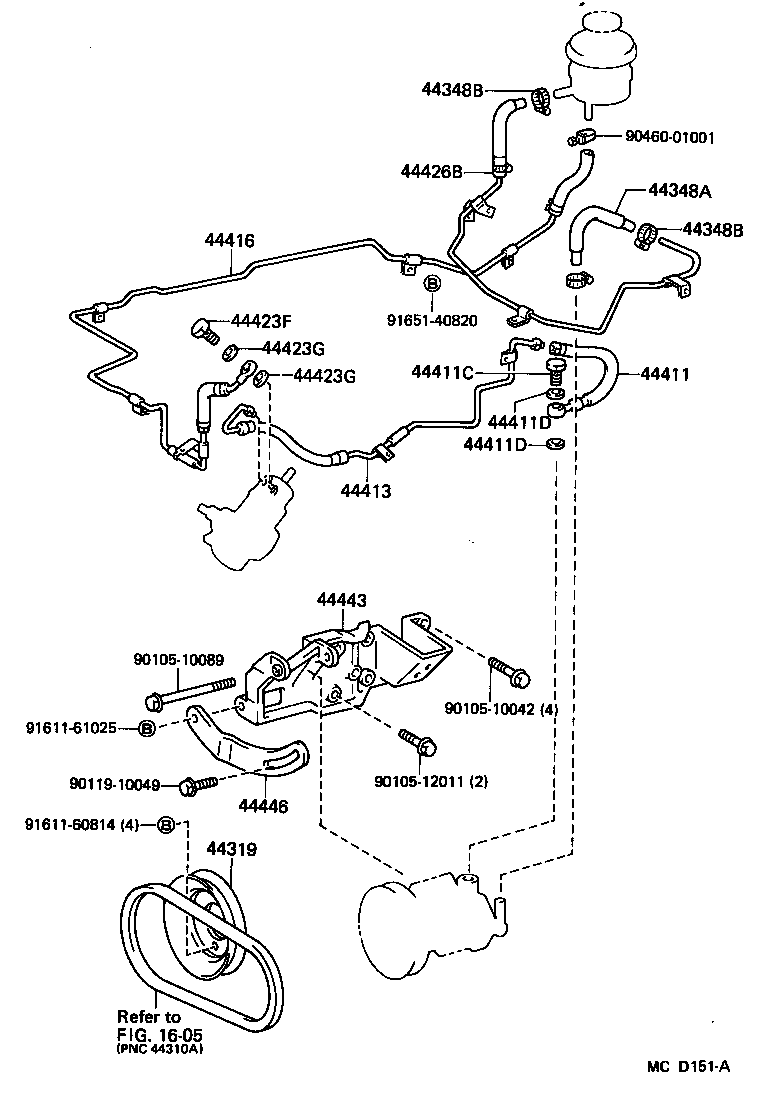

POWER STEERING TUBE

(8508- )LHD

 DYNA100 |  POWER STEERING TUBE ** Refer Fig 44319 - PULLEY, VANE PUMP DRIVE 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) 44411 - HOSE, PRESSURE FEED 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44411D - GASKET(FOR PRESSURE FEED HOSE) 44413 - TUBE, PRESSURE FEED, NO.1 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44423F - BOLT, UNION 44423G - GASKET, UNION BOLT 44423G - GASKET, UNION BOLT 44426B - TUBE, OIL RESERVOIR TO PUMP 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
