TOYOTA SUPRA MA70R-BLPVF / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

(8601- )

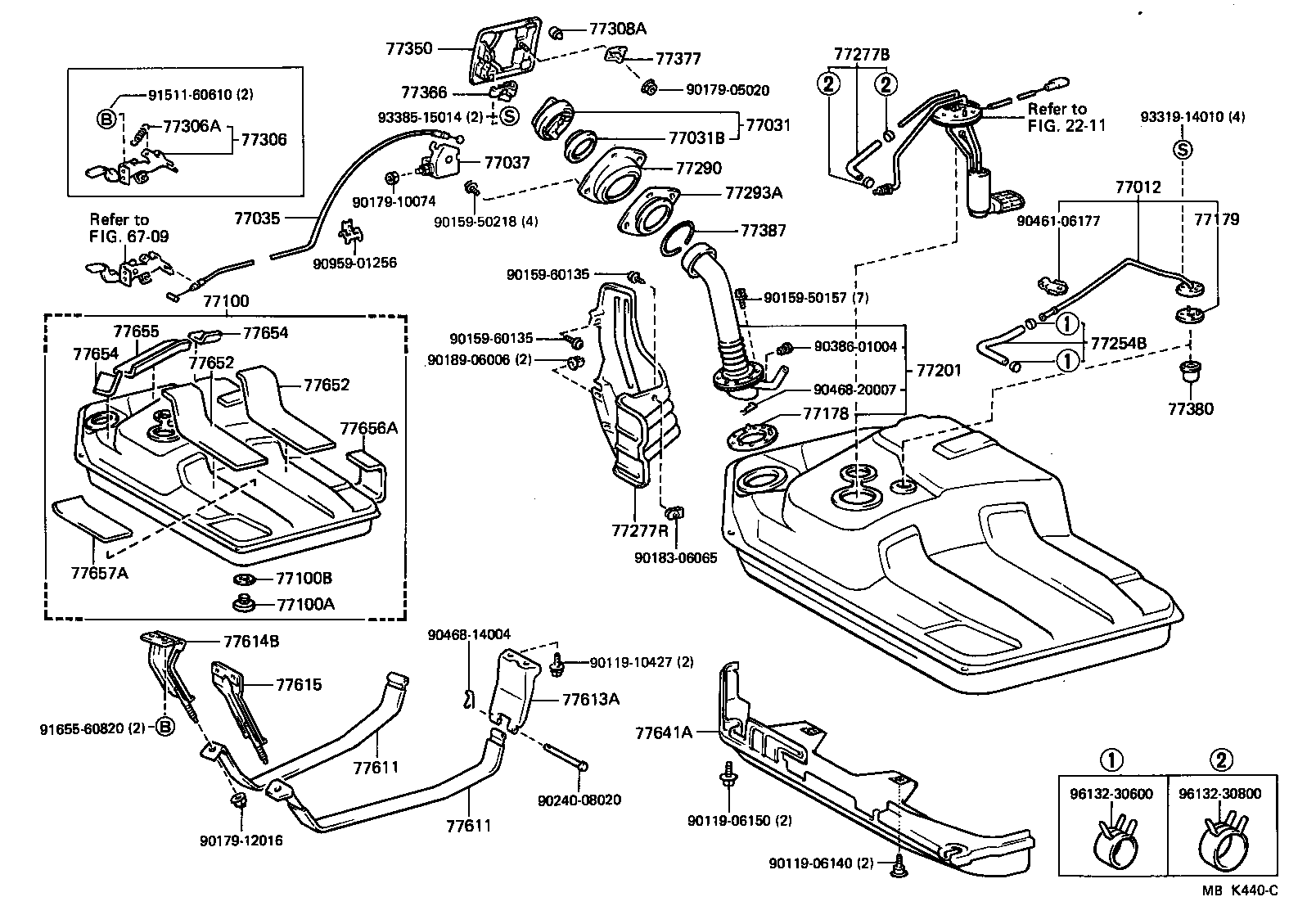

SUPRA | FUEL TANK TUBE ** Refer Fig ** Refer Fig 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179 - RETAINER, FUEL TANK MOUNTING, FRONT 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306A - SPRING, FUEL LID OPEN LEVER 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77387 - RING, FUEL INLET BOX 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77613A - BRACKET, FUEL TANK BAND, NO.1 77614B - BRACKET, FUEL TANK BAND, NO.2 77615 - BRACKET, FUEL TANK BAND, NO.3 77641A - PROTECTOR, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77654 - CUSHION, FUEL TANK, NO.2 77654 - CUSHION, FUEL TANK, NO.2 77655 - CUSHION, FUEL TANK, NO.3 77656A - CUSHION, FUEL TANK, NO.4 77657A - CUSHION, FUEL TANK, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
