TOYOTA STARLET EP71L-PGMSSG / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

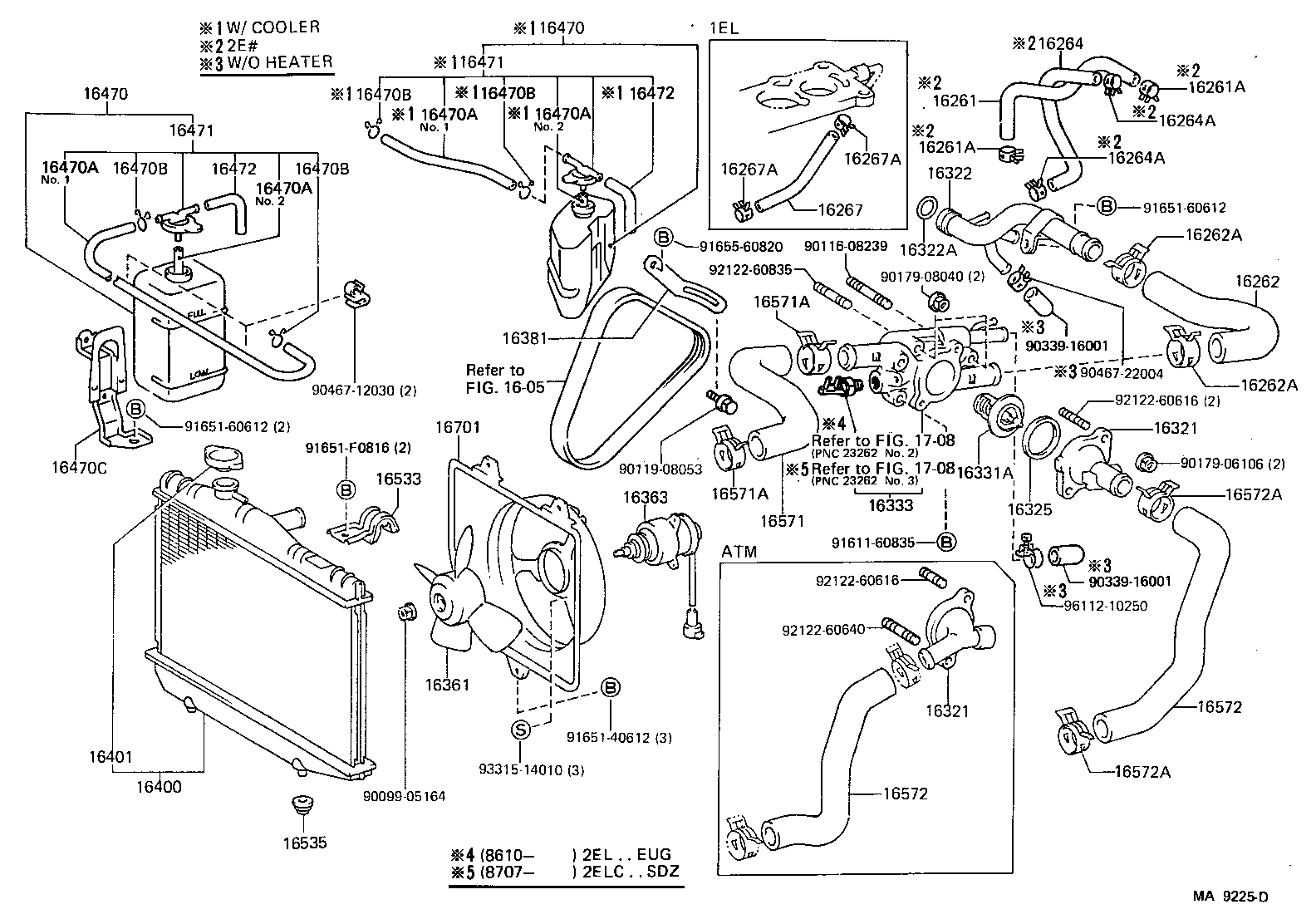

ILLUST NO. 1 OF 2(8604- )1EL,2EL#

 STARLET |  RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16262 - HOSE, WATER INLET 16262A - CLIP(FOR WATER INLET HOSE) 16262A - CLIP(FOR WATER INLET HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16321 - INLET, WATER 16321 - INLET, WATER 16322 - PIPE, WATER INLET 16322A - RING, O(FOR WATER INLET) 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT 16333 - HOUSING, WATER OUTLET 16361 - FAN 16363 - MOTOR, COOLING FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470C - BRACKET(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16472 - HOSE, BREATHER 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
