TOYOTA CAMRY JPP VZV21L-UEMDKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

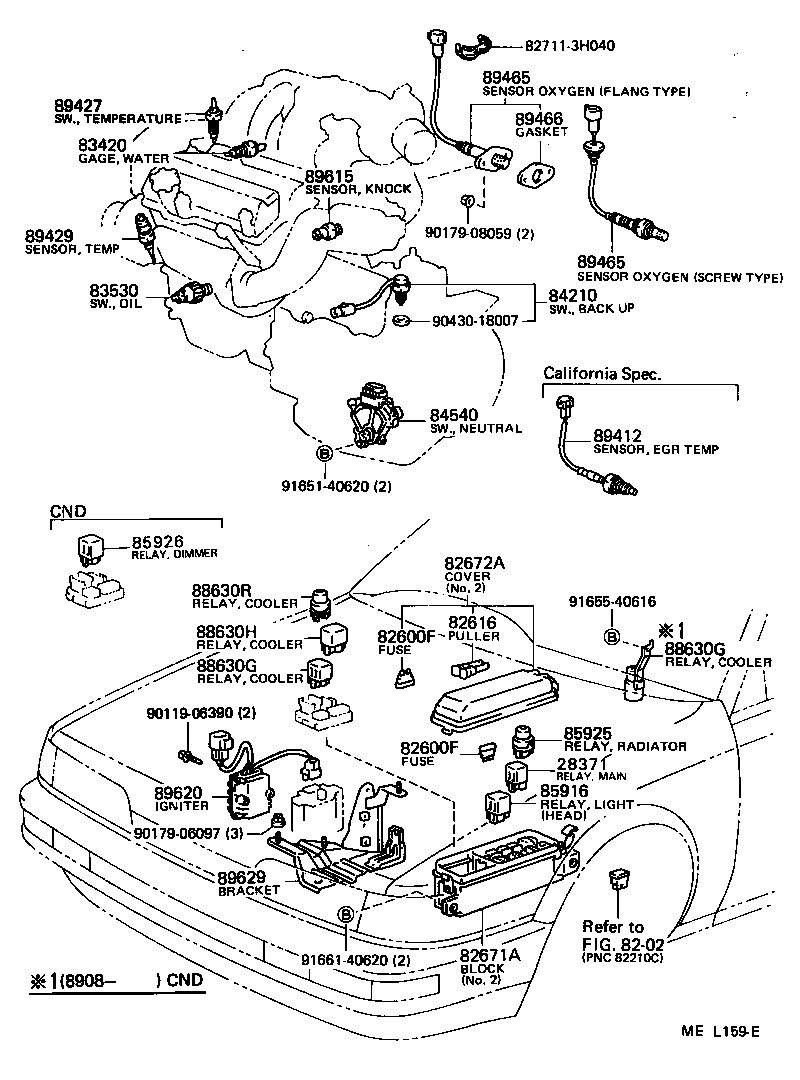

ILLUST NO. 1 OF 5(8808- )VZV21

 CAMRY JPP |  SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82671A - BLOCK, JUNCTION 82672A - COVER, JUNCTION BLOCK  ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85925 - RELAY, RADIATOR FAN 85926 - RELAY, HEADLAMP DIMMER 88630G - RELAY ASSY, COOLER 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 88630R - RELAY ASSY, COOLER, NO.3 89412 - SENSOR, E.G.R GAS TEMPERATURE 89427 - SWITCH, TEMPERATURE DETECT 89429 - SENSOR, OIL TEMPERATURE 89465 - SENSOR, OXYGEN 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89615 - SENSOR, KNOCK CONTROL 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
