TOYOTA CAMRY VZV21L-UEPNKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

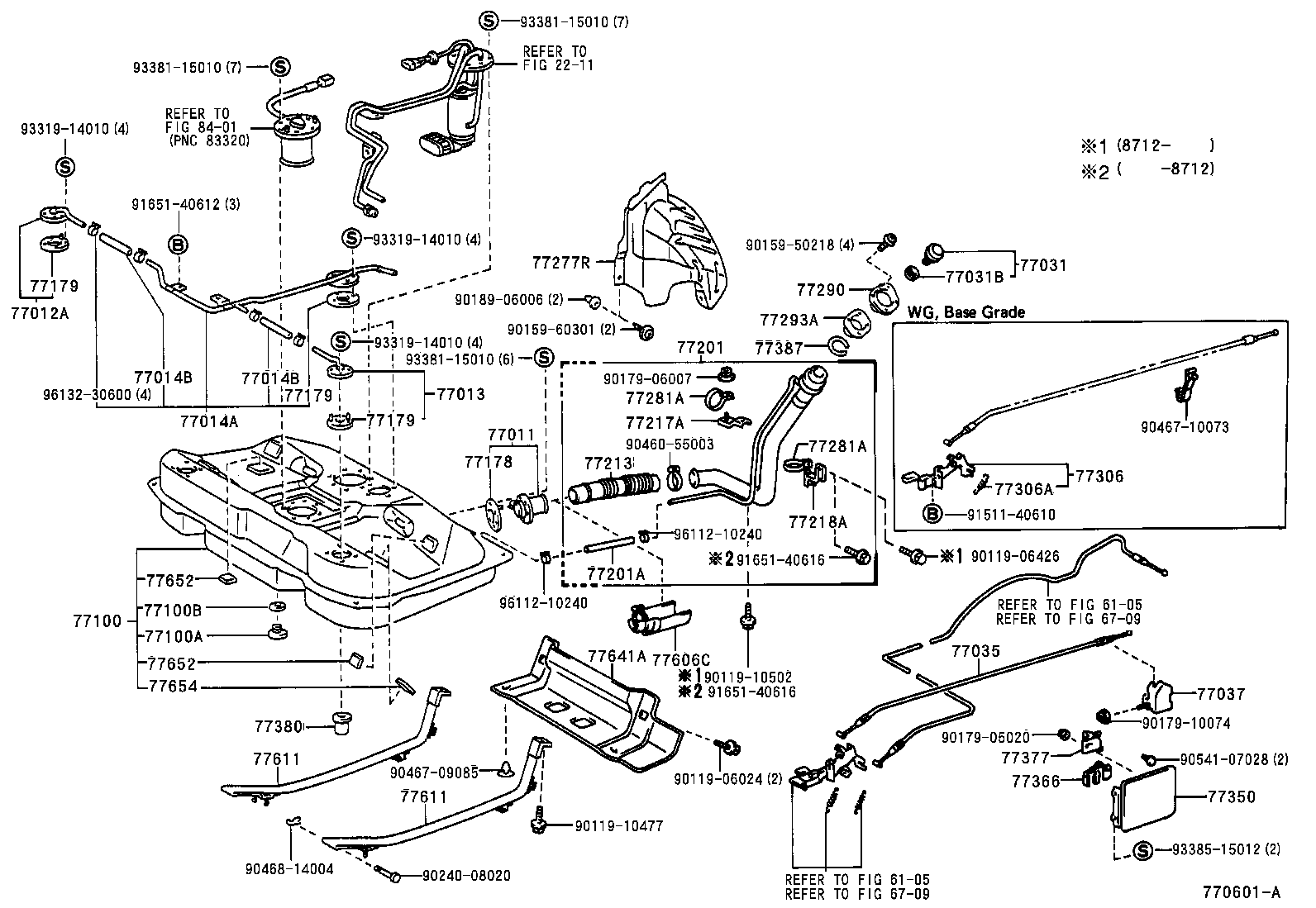

FUEL TANK TUBE

(8608- )SV21,VZV21

 CAMRY |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179 - RETAINER, FUEL TANK MOUNTING, FRONT 77179 - RETAINER, FUEL TANK MOUNTING, FRONT 77179 - RETAINER, FUEL TANK MOUNTING, FRONT 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77213 - HOSE, FUEL TANK SUB INLET 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77306A - SPRING, FUEL LID OPEN LEVER 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77387 - RING, FUEL INLET BOX 77606C - PROTECTOR, FUEL TANK, NO.2 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77641A - PROTECTOR, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77654 - CUSHION, FUEL TANK, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
