TOYOTA CRESSIDA WAGON RX73R-XEMNSN / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

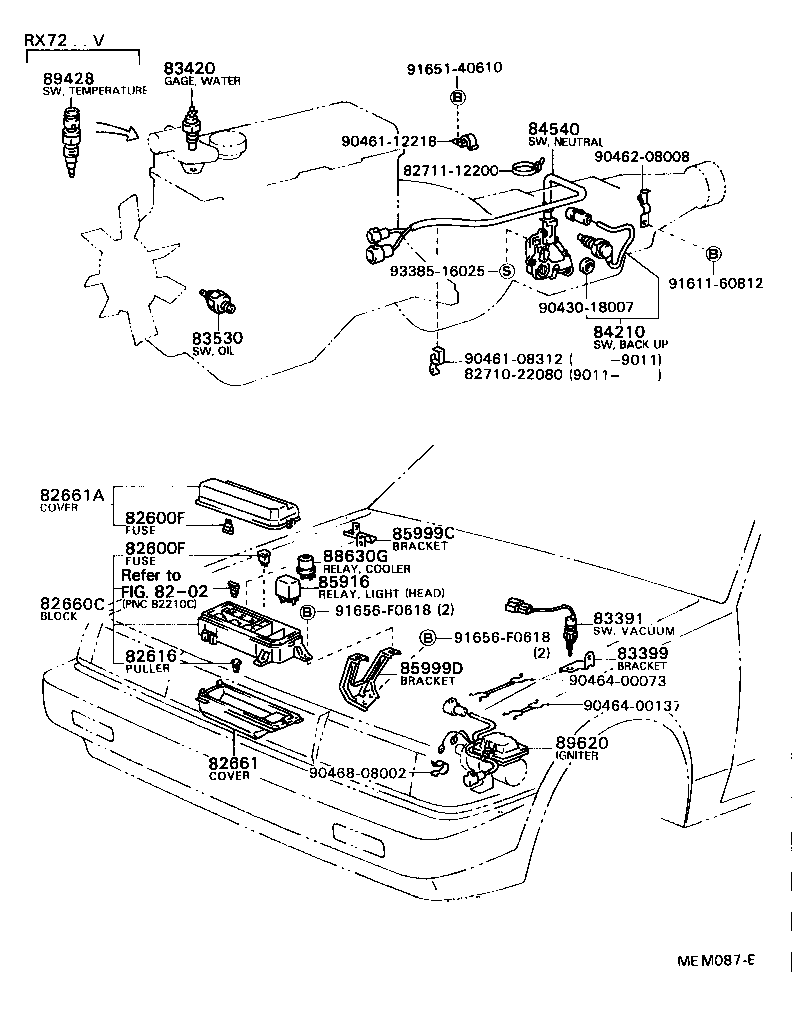

ENGINE,TRANSMISSION & ENGINE ROOM ILLUST NO. 1 OF 7(8810-9302)RX7#,YX72

CRESSIDA WAGON | SWITCH RELAY COMPUTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82660C - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661A - COVER, RELAY BLOCK, NO.2 ** Std Part ** Std Part 83391 - SWITCH, VACUUM 83399 - BRACKET, VACUUM SWITCH 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85999C - BRACKET, RELAY, NO.3 85999D - BRACKET, RELAY, NO.4 88630G - RELAY ASSY, COOLER 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89620 - IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
