TOYOTA CRESSIDA WAGON YX72R-XEMRSN / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

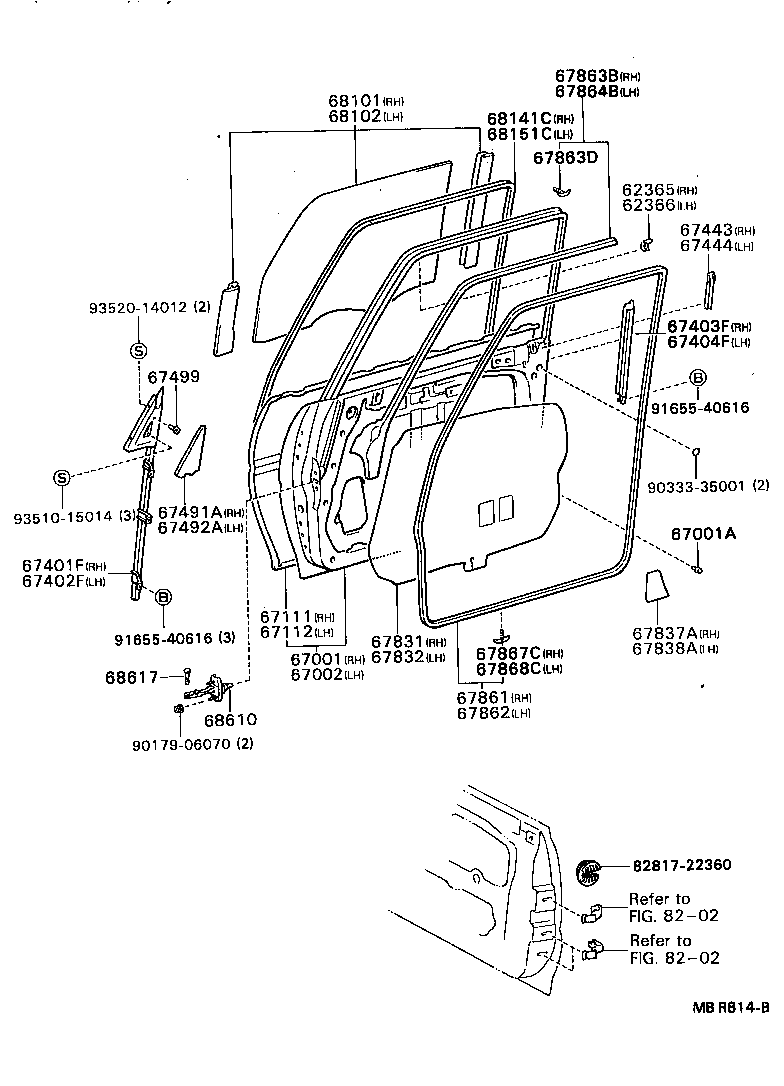

ILLUST NO. 1 OF 2(8810- )

 CRESSIDA WAGON |  FRONT DOOR PANEL GLASS 62365 - CLIP, DOOR WINDOW GLASS, FRONT RH 62366 - CLIP, DOOR WINDOW GLASS, FRONT LH 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH 67111 - PANEL, FRONT DOOR, OUTER RH 67112 - PANEL, FRONT DOOR, OUTER LH 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67443 - PROTECTOR, FRONT DOOR LOCKING ROD, RH 67444 - PROTECTOR, FRONT DOOR LOCKING ROD, LH 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67837A - SEAL, FRONT DOOR VENT, RH 67838A - SEAL, FRONT DOOR VENT, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68151C - RUN, FRONT DOOR GLASS, LH 68610 - CHECK ASSY, FRONT DOOR 68617 - PIN, FRONT DOOR CHECK ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
