TOYOTA CRESSIDA LX80L-AEMES / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

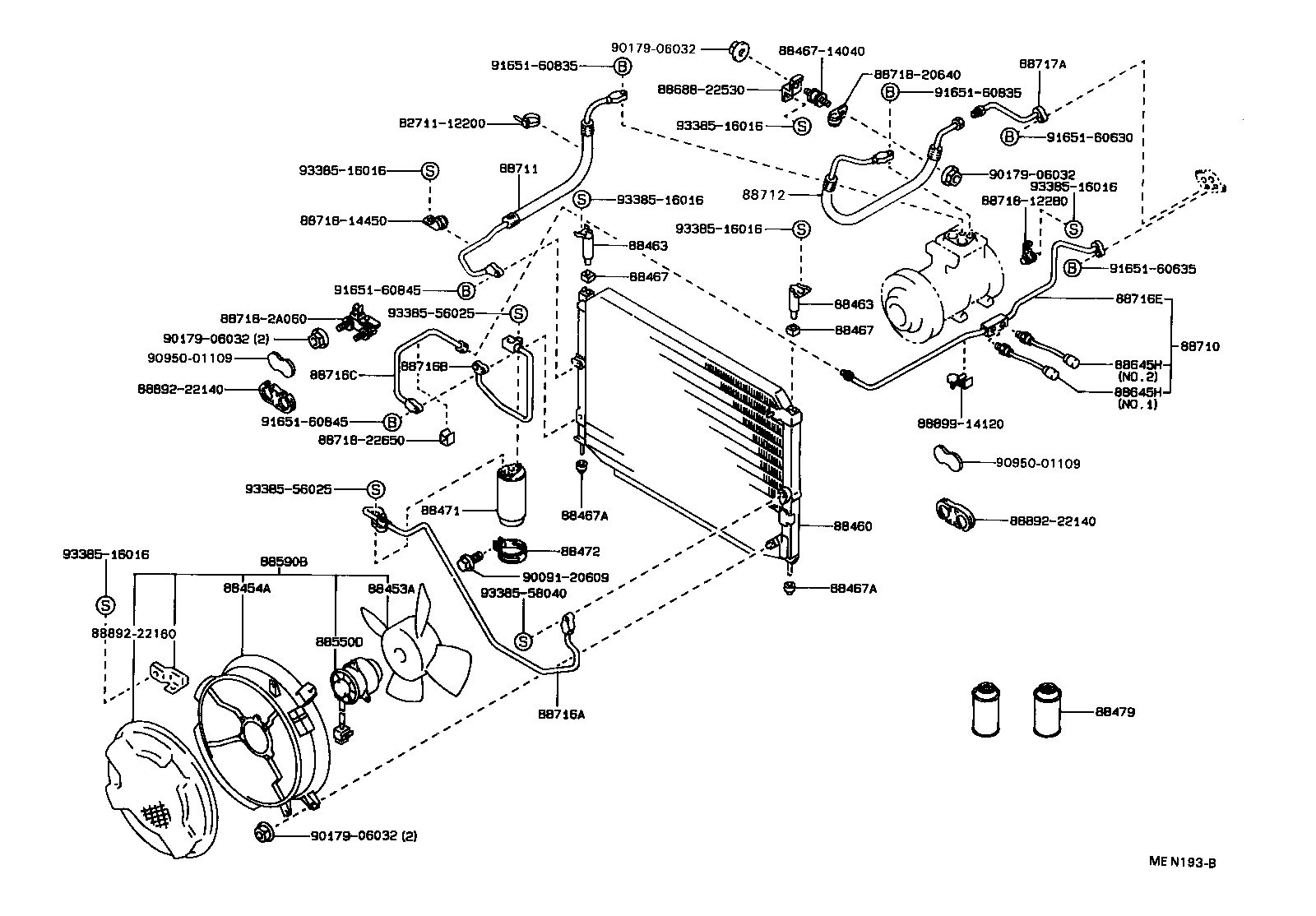

HEATING AIR CONDITIONING COOLER PIPING

(8808-9008)LX80

CRESSIDA | HEATING AIR CONDITIONING COOLER PIPING ** Std Part 88453A - FAN, COOLING 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463 - BRACKET, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 ** Std Part 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550D - MOTOR ASSY, BLOWER 88590B - BLOWER ASSY, W/SHROUD 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1 ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
