TOYOTA CRESSIDA MX81L-AEMNEV / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CAMSHAFT VALVE

(8808-9302)5ME

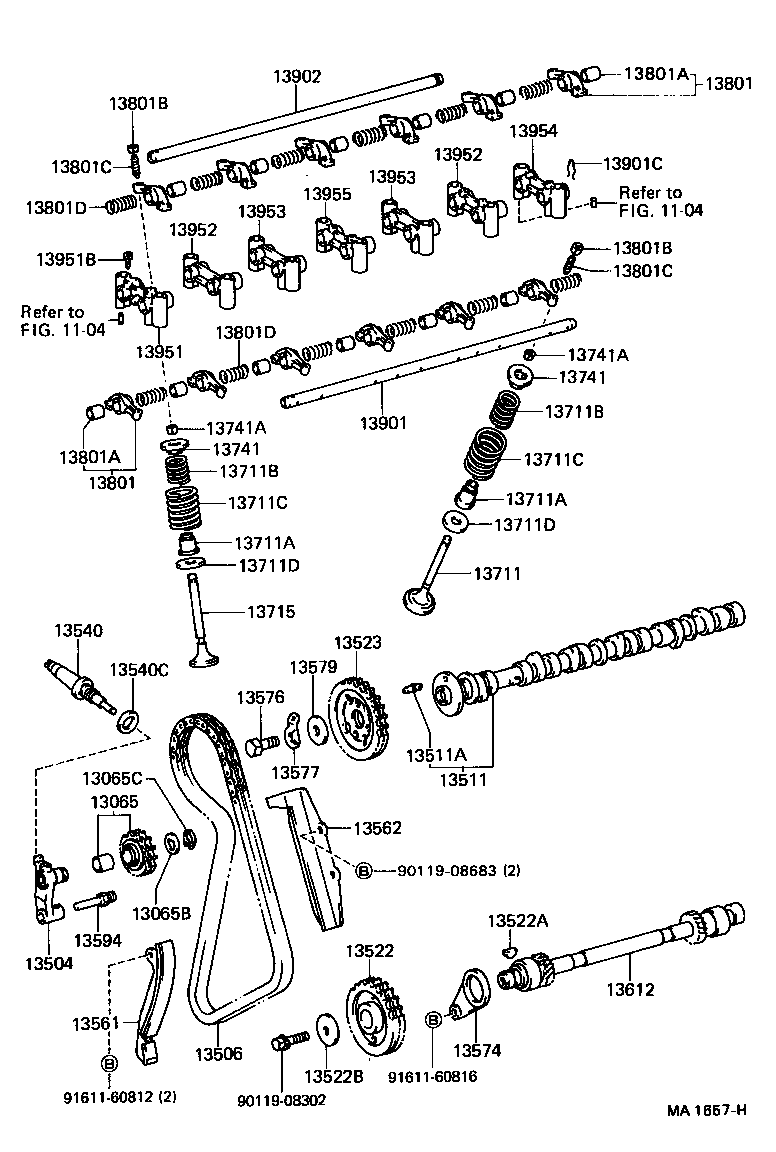

CRESSIDA | CAMSHAFT VALVE ** Refer Fig ** Refer Fig 13065 - GEAR SUB-ASSY, TENSION 13065B - WASHER, TIMING CHAIN TENSION GEAR CLAW 13065C - RING, SHAFT SNAP(FOR TENSION GEAR) 13504 - ARM SUB-ASSY, TENSION 13506 - CHAIN SUB-ASSY 13511 - CAMSHAFT 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13522 - GEAR, PUMP DRIVE SHAFT 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) 13522B - WASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR) 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13540 - TENSIONER ASSY, CHAIN, NO.1 13540C - GASKET(FOR CHAIN TENSIONER) 13561 - DAMPER, CHAIN VIBRATION, NO.1 13562 - DAMPER, CHAIN VIBRATION, NO.2 13574 - PLATE, PUMP DRIVE SHAFT 13576 - BOLT, CAMSHAFT TIMING GEAR 13577 - PLATE, LOCK 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT 13594 - SHAFT, TENSION GEAR ARM 13612 - SHAFT, PUMP DRIVE 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13711C - SPRING, COMPRESSION(FOR OUTER) 13711C - SPRING, COMPRESSION(FOR OUTER) 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) 13715 - VALVE, EXHAUST 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) 13801C - SCREW, VALVE ADJUSTING 13801C - SCREW, VALVE ADJUSTING 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 13951 - SUPPORT, VALVE ROCKER, NO.1 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) 13952 - SUPPORT, VALVE ROCKER, NO.2 13952 - SUPPORT, VALVE ROCKER, NO.2 13953 - SUPPORT, VALVE ROCKER, NO.3 13953 - SUPPORT, VALVE ROCKER, NO.3 13954 - SUPPORT, VALVE ROCKER, NO.4 13955 - SUPPORT, VALVE ROCKER, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part
