TOYOTA TOYOTA1000 KP36L- / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

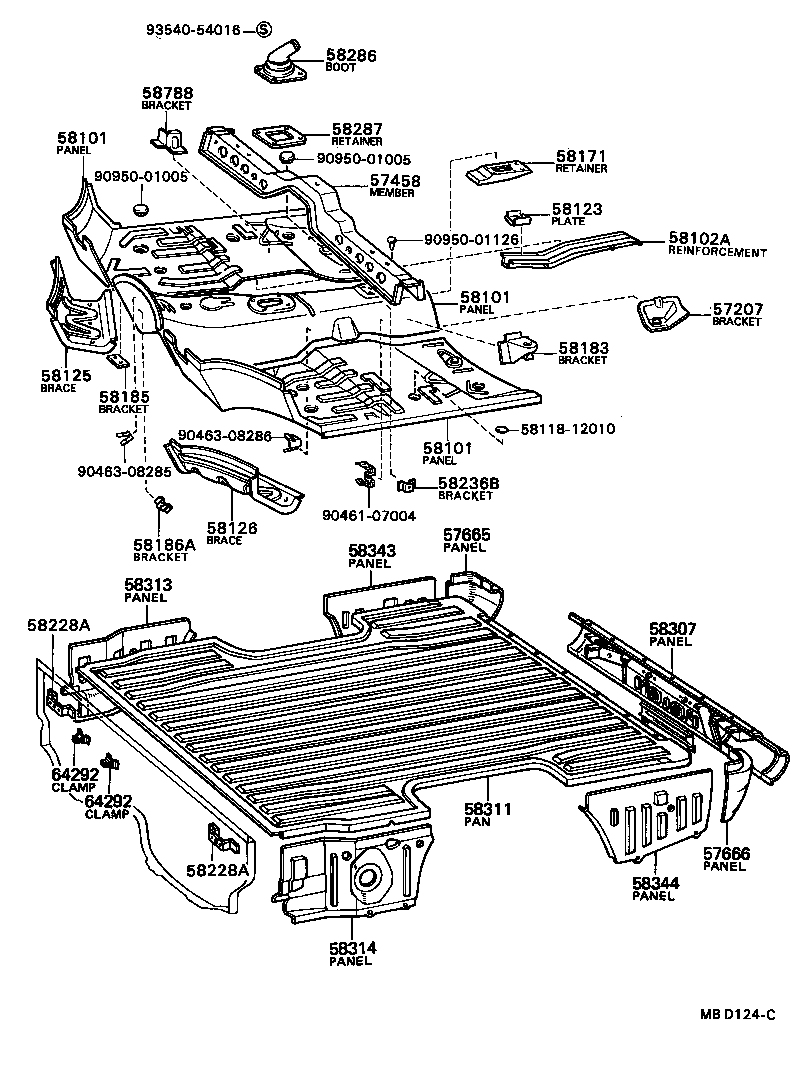

FLOOR PAN LOWER BACK PANEL

(8109- )

TOYOTA1000 | FLOOR PAN LOWER BACK PANEL 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 57665 - PANEL, LOWER BACK SIDE, RH 57666 - PANEL, LOWER BACK SIDE, LH 58101 - PAN SUB-ASSY, FRONT FLOOR 58101 - PAN SUB-ASSY, FRONT FLOOR 58101 - PAN SUB-ASSY, FRONT FLOOR 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR ** Std Part 58123 - PLATE, FLOOR REAR ENGINE MOUNTING 58125 - BRACE, FLOOR END, RH 58126 - BRACE, FLOOR END, LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58183 - BRACKET, FRONT SEAT MOUNTING, INNER 58185 - BRACKET, ACCELERATOR PEDAL SUPPORT 58186A - BRACKET, BRAKE TUBE SET 58228A - BRACKET, BELT GUIDE 58228A - BRACKET, BELT GUIDE 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 58287 - RETAINER, SHIFT LEVER BOOT 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58343 - PANEL, REAR FLOOR SIDE, REAR RH 58344 - PANEL, REAR FLOOR SIDE, REAR LH 58788 - BRACKET, JACK HANDLE SUPPORT 64292 - CLAMP, JACK HANDLE 64292 - CLAMP, JACK HANDLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
