TOYOTA LAND CRUISER 60 62 HJ61LG-MEXW / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

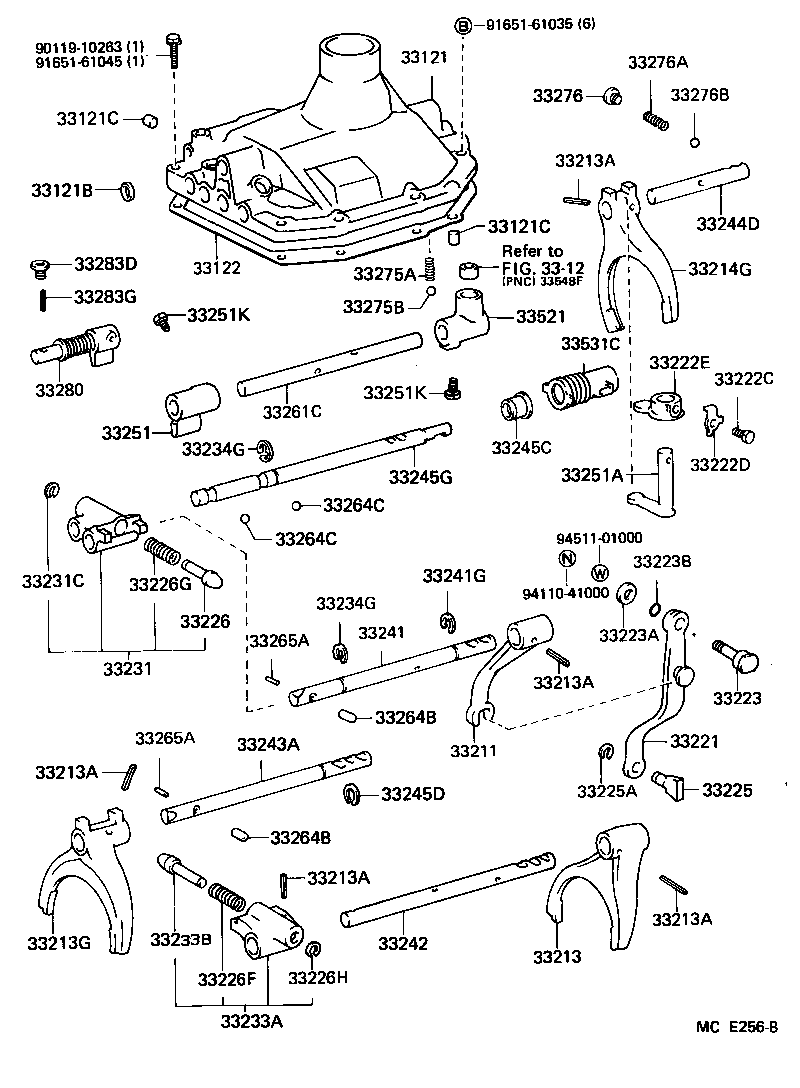

GEAR SHIFT FORK LEVER SHAFT MTM

H55F (8708- )MTM

LAND CRUISER 60 62 | GEAR SHIFT FORK LEVER SHAFT MTM ** Refer Fig 33121 - COVER, MANUAL TRANSMISSION CASE 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) 33121C - PIN(FOR TRANSMISSION CASE COVER) 33121C - PIN(FOR TRANSMISSION CASE COVER) 33122 - GASKET, MANUAL TRANSMISSION CASE COVER 33211 - FORK, REVERSE SHIFT 33213 - FORK, 1ST & 2ND SHIFT 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) 33213G - FORK, GEAR SHIFT, NO.2 33214G - FORK, GEAR SHIFT, NO.3 33221 - ARM, REVERSE SHIFT 33222C - BOLT(FOR 5TH SHIFT ARM) 33222D - WASHER(FOR 5TH SHIFT ARM) 33222E - ARM, 5TH SHIFT 33223 - PIVOT, SHIFT ARM 33223A - WASHER(FOR SHIFT ARM PIVOT) 33223B - RING, O(FOR SHIFT ARM PIVOT) 33225 - SHOE, SHIFT ARM 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) 33226 - PLUNGER, REVERSE SHIFT RETURN 33226F - SPRING, COMPRESSION(FOR 1ST & 2ND SHIFT RETURN PLUNGER) 33226G - SPRING, COMPRESSION(FOR REVERSE & 5TH SHIFT RETURN PLUNGER) 33226H - RING, SHAFT SNAP(FOR 1ST & 2ND SHIFT RETURN PLUNGER) 33231 - HEAD, REVERSE SHIFT 33231C - RING(FOR REVERSE SHIFT HEAD) 33233A - HEAD, GEAR SHIFT, NO.2 33233B - PLUNGER, REVERSE SHIFT RETURN 33234G - RING, E (FOR REVERSE & 5TH SHIFT HEAD) 33234G - RING, E (FOR REVERSE & 5TH SHIFT HEAD) 33241 - SHAFT, REVERSE SHIFT FORK 33241G - RING, E(FOR REVERSE SHIFT FORK SHAFT) 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33243A - SHAFT, GEAR SHIFT FORK, NO.2 33244D - SHAFT, GEAR SHIFT FORK, NO.3 33245C - SEAL, OIL (FOR 5TH SHIFT ARM SHAFT) 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) 33245G - SHAFT, GEAR SHIFT FORK, NO.4 33251 - LEVER, SHIFT & SELECT 33251A - LEVER, SHIFT, INNER NO.1 33251K - BOLT, WASHER BASED HEAD HEXAGON 33251K - BOLT, WASHER BASED HEAD HEXAGON 33261C - SHAFT, SHIFT & SELECT LEVER 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) 33264C - BALL (FOR SHIFT INTER LOCK) 33264C - BALL (FOR SHIFT INTER LOCK) 33265A - ROLLER, NO.2 (FOR INTER LOCK) 33265A - ROLLER, NO.2 (FOR INTER LOCK) 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275B - BALL, SHAFT DETENT 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) 33276B - BALL, SHIFT DETENT, NO.2 33280 - PIN ASSY, REVERSE RESTRICT 33283D - PLUG (FOR REVERSE RESTRICT PIN) 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) 33521 - HOUSING, SHIFT LEVER 33531C - BOOT, DUST (FOR 5TH SHIFT ARM SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
