TOYOTA TERCEL EL31L-ZDHDEA / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SHIFT LEVER RETAINER

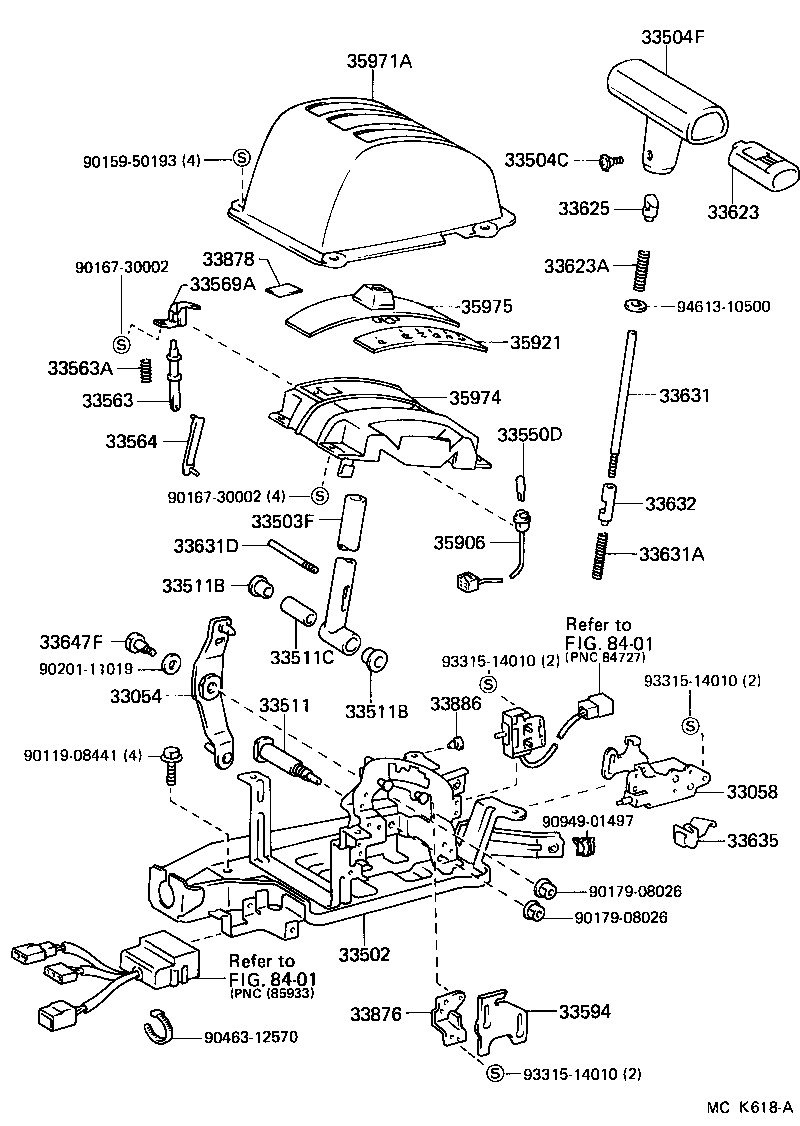

ILLUST NO. 1 OF 2(8908- )3FC

TERCEL | SHIFT LEVER RETAINER 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33502 - PLATE SUB-ASSY, SHIFT LEVER 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511C - COLLAR (FOR CONTROL SHAFT) 33550D - BULB, POSITION INDICATOR LAMP 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33564 - LINK, SHIFT LOCK RELEASE, NO.1 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33632 - ROD, DETENT, NO.2 33635 - GUIDE, WIRE (FOR SHIFT LEVER) 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) 33876 - GUIDE, SHIFT LOCK PLATE 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 33886 - STOPPER, SHIFT LEVER 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
