TOYOTA TERCEL EL31L-ZDHDEA / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

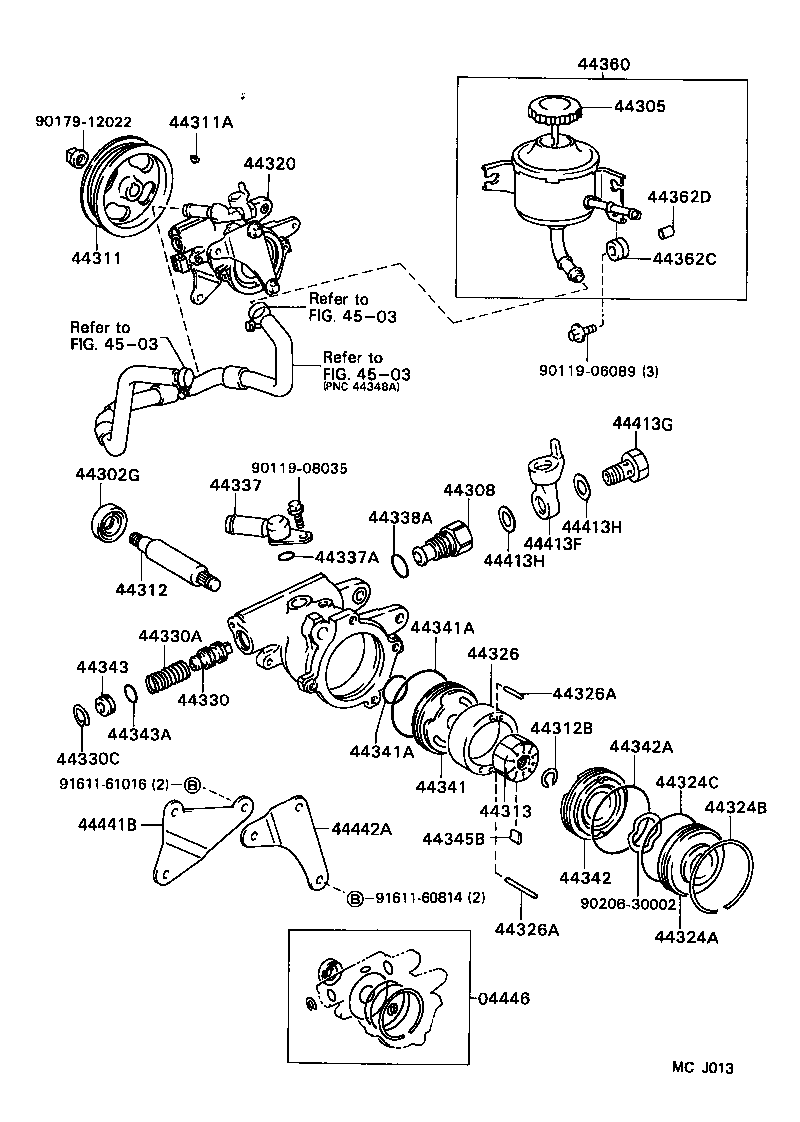

VANE PUMP RESERVOIR POWER STEERING

(8908- )EFI

TERCEL | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44311 - PULLEY, VANE PUMP 44311A - KEY, VANE PUMP PULLEY 44312 - SHAFT, VANE PUMP 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44320 - PUMP ASSY, VANE 44324A - HOUSING, PUMP, REAR 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) 44324C - RING, O(FOR PUMP HOUSING REAR) 44326 - RING, CAM(FOR VANE PUMP) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44337A - RING, O(FOR POWER STEERING SUCTION PORT) 44338A - RING, O(FOR PRESSURE PORT UNION) 44341 - PLATE, VANE PUMP SIDE, FRONT 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44343 - SEAT, FLOW CONTROL SPRING 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) 44345B - PLATE, VANE PUMP 44360 - RESERVOIR ASSY, VANE PUMP OIL 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) 44413F - TUBE, PRESSURE FEED, NO.2 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) 44441B - BRACKET, PUMP, FRONT 44442A - BRACKET, VANE PUMP, REAR ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
