TOYOTA TERCEL EL31L-ZDHDEA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

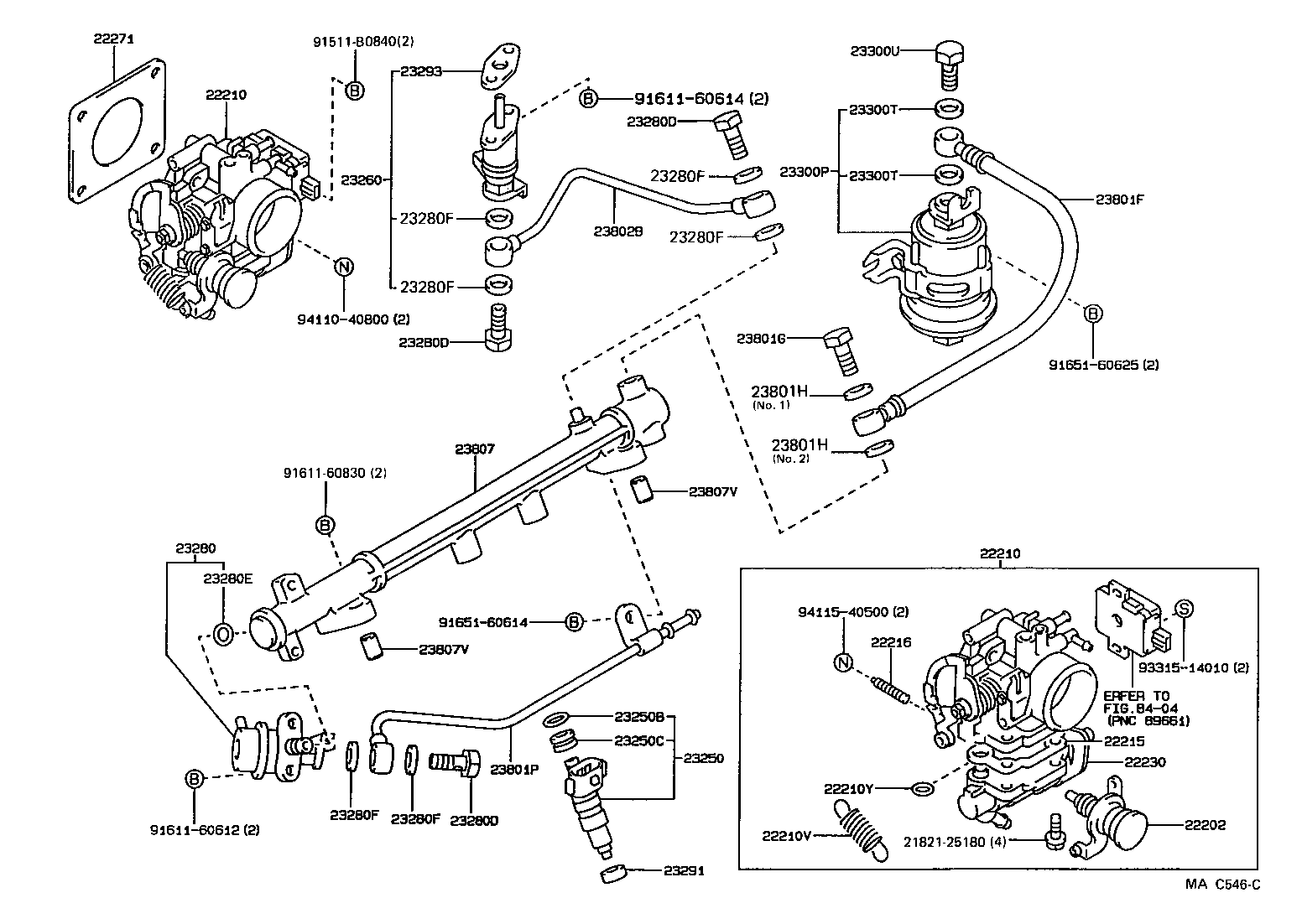

ILLUST NO. 1 OF 2(8908- )3EE

 TERCEL |  FUEL INJECTION SYSTEM  ** Std Part 22202 - DASH POT SUB-ASSY 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22210V - SPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN) 22210Y - RING, O(FOR AIR TUBE) 22215 - GASKET, THROTTLE BODY COVER 22216 - SCREW, DASH POT ADJUSTING 22230 - VALVE ASSY, AUXILIARY AIR 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23802B - PIPE SUB-ASSY, FUEL, NO.2 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23807V - SPACER, NO.1(FOR DELIVERY PIPE) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
