TOYOTA CAMRY CV20R-UEMNXW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

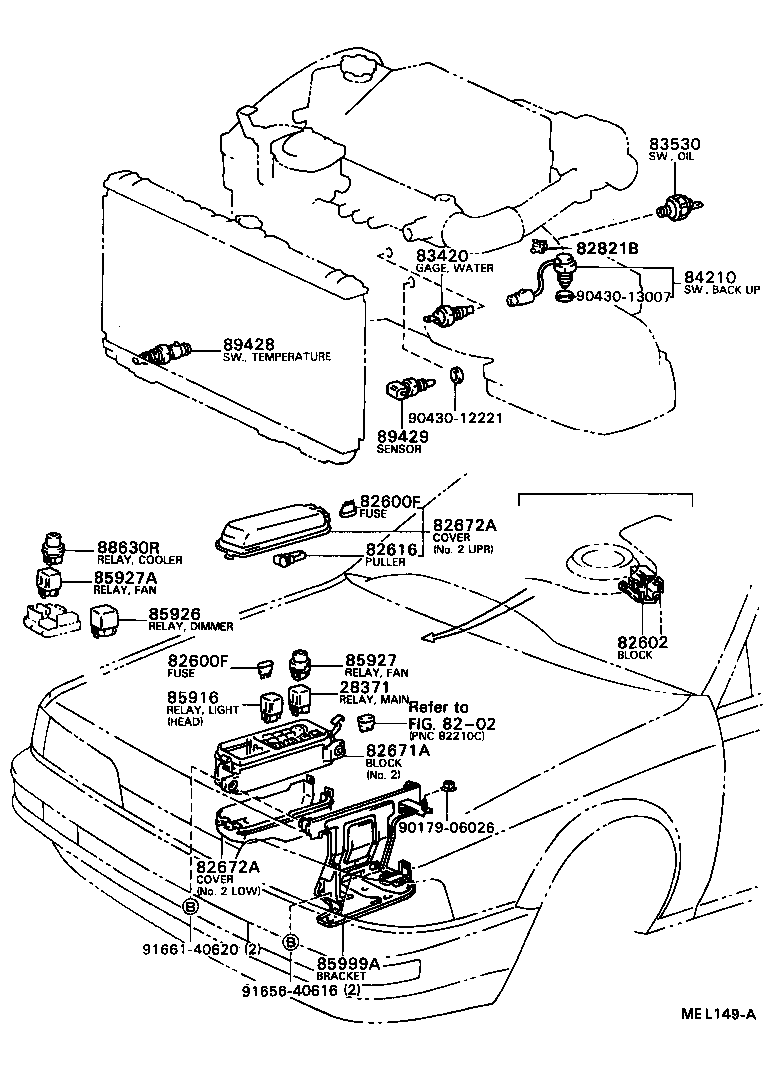

ILLUST NO. 1 OF 7(8808- )CV20

CAMRY | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82671A - BLOCK, JUNCTION 82672A - COVER, JUNCTION BLOCK 82672A - COVER, JUNCTION BLOCK 82821B - COVER, CONNECTOR 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 85916 - RELAY, LIGHT CONTROL 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85999A - BRACKET, RELAY, NO.2 88630R - RELAY ASSY, COOLER, NO.3 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89429 - SENSOR, OIL TEMPERATURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
