TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

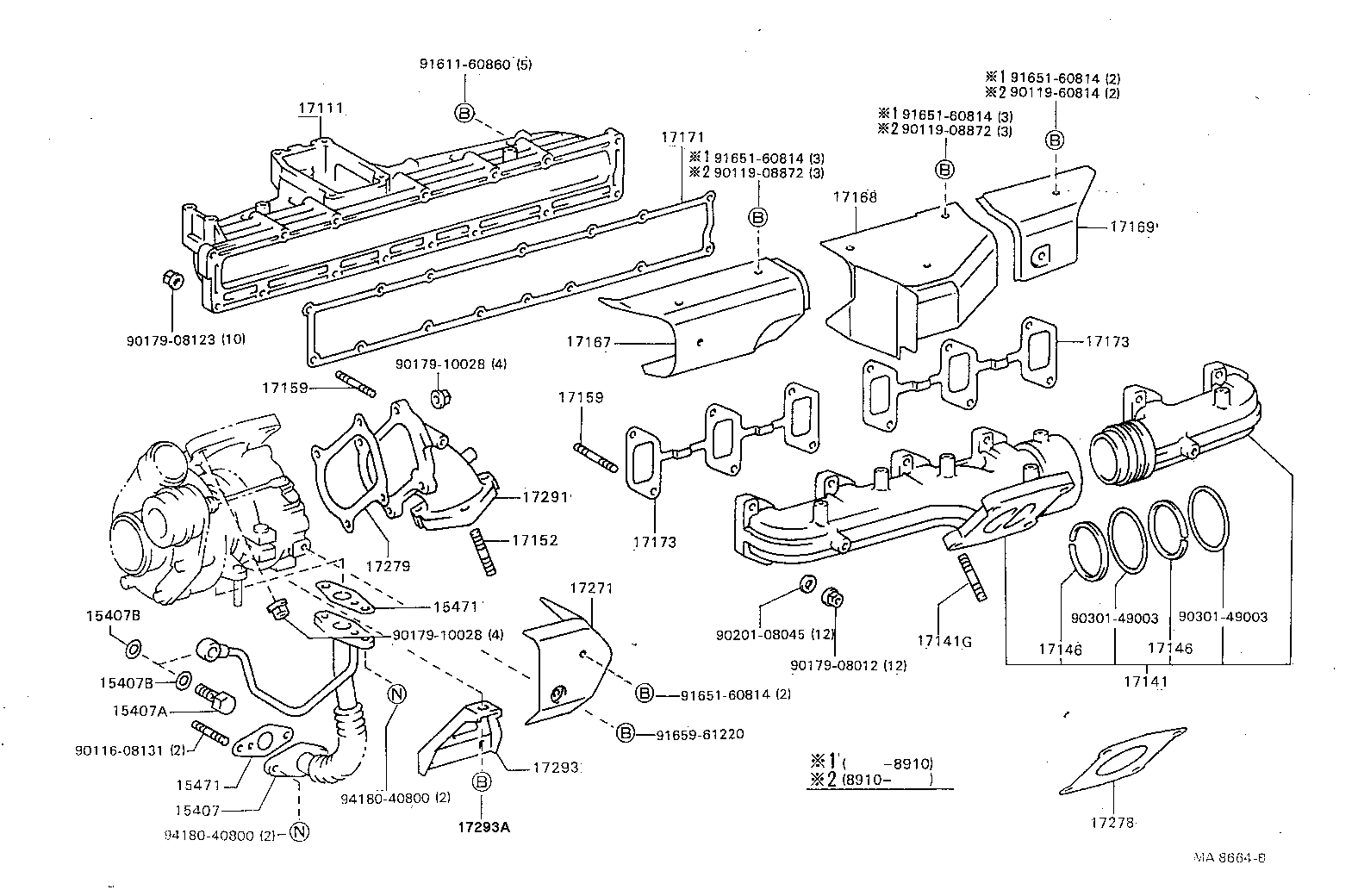

ILLUST NO. 1 OF 2(8610-9001)12HT

 COASTER |  MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15471 - GASKET, TURBO OIL INLET 17111 - MANIFOLD, INTAKE 17141 - MANIFOLD, EXHAUST 17141G - BOLT, STUD(FOR TURBOCHARGER) 17146 - RING, EXHAUST MANIFOLD 17146 - RING, EXHAUST MANIFOLD 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17293A - BOLT, STUD(FOR TURBOCHARGER STAY)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
