TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

ALTERNATOR

24V 55A (8205-8808)13B,3B,2H..BB2#,HB30..WC ; (8306-

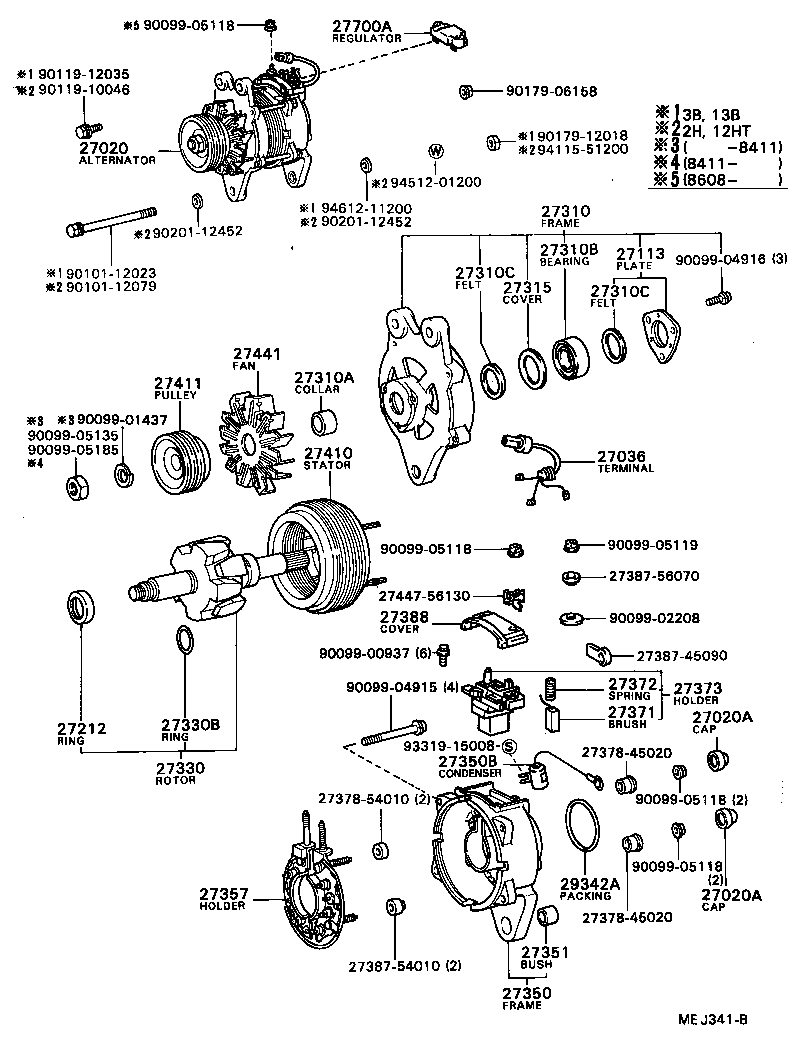

COASTER | ALTERNATOR 27020 - ALTERNATOR ASSY 27020A - CAP, ALTERNATOR TERMINAL 27020A - CAP, ALTERNATOR TERMINAL 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27113 - PLATE, BEARING RETAINER, ALTERNATOR 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) 27315 - COVER, ALTERNATOR FELT, INNER NO.1 27330 - ROTOR ASSY, ALTERNATOR 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) 27350 - FRAME ASSY, RECTIFIER END 27350B - CONDENSER, ALTERNATOR 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27357 - HOLDER, ALTERNATOR, W/RECTIFIER 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH 27373 - HOLDER, ALTERNATOR BRUSH, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 27388 - COVER, ALTERNATOR BRUSH 27410 - STATOR ASSY, ALTERNATOR 27411 - PULLEY, ALTERNATOR 27441 - FAN, ALTERNATOR ** Std Part 27700A - REGULATOR ASSY, GENERATOR 29342A - PACKING, VACUUM PUMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
