TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / INJECTION NOZZLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INJECTION NOZZLE

(8610-9001)12HT

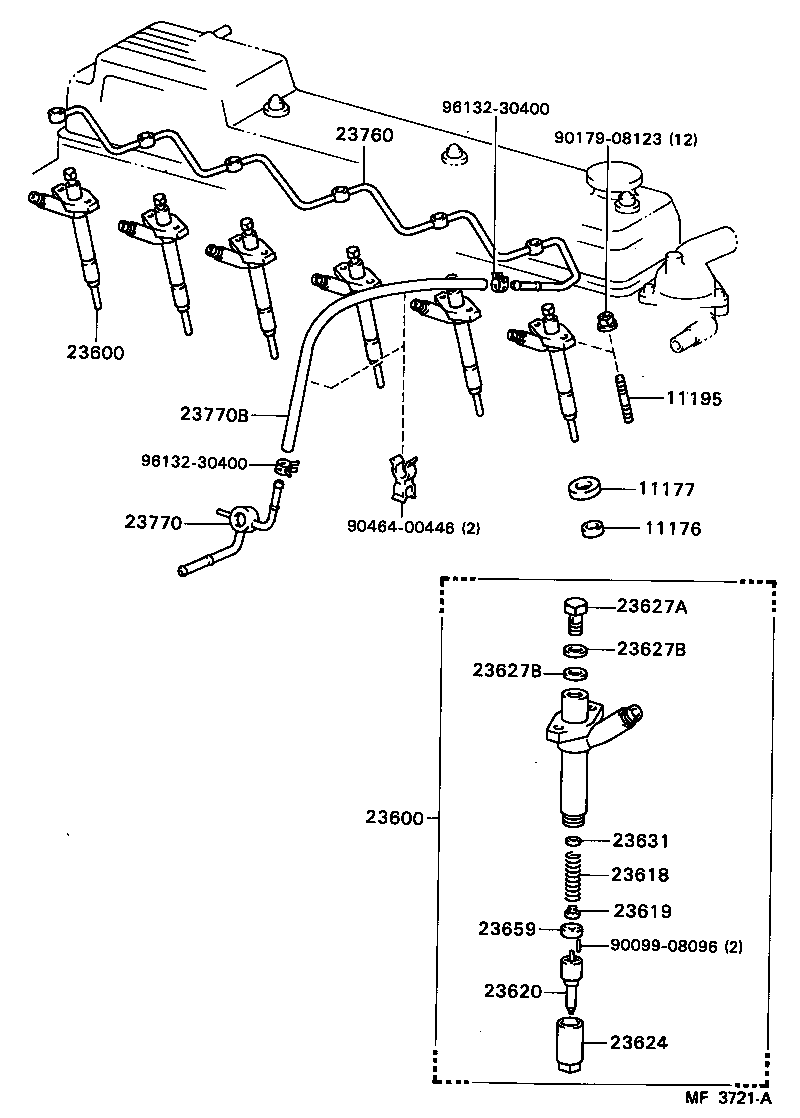

 COASTER |  INJECTION NOZZLE 11176 - SEAT, INJECTION NOZZLE 11177 - GASKET, INJECTION NOZZLE SEAT 11195 - BOLT, NOZZLE SET, STUD 23600 - HOLDER & NOZZLE SET, NOZZLE 23600 - HOLDER & NOZZLE SET, NOZZLE 23618 - SPRING, NOZZLE HOLDER PRESSURE 23619 - PIN, NOZZLE HOLDER PRESSURE 23620 - NOZZLE ASSY 23624 - NUT, NOZZLE RETAINING 23627A - SCREW, FOLLOW(FOR NOZZLE) 23627B - WASHER, COPPER PLATE(FOR NOZZLE) 23627B - WASHER, COPPER PLATE(FOR NOZZLE) 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) 23659 - PACKING, TIP(FOR NOZZLE) 23760 - PIPE ASSY, NOZZLE LEAKAGE 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 23770B - HOSE, FUEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
