TOYOTA COASTER RB20L-MDR / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COMPRESSOR

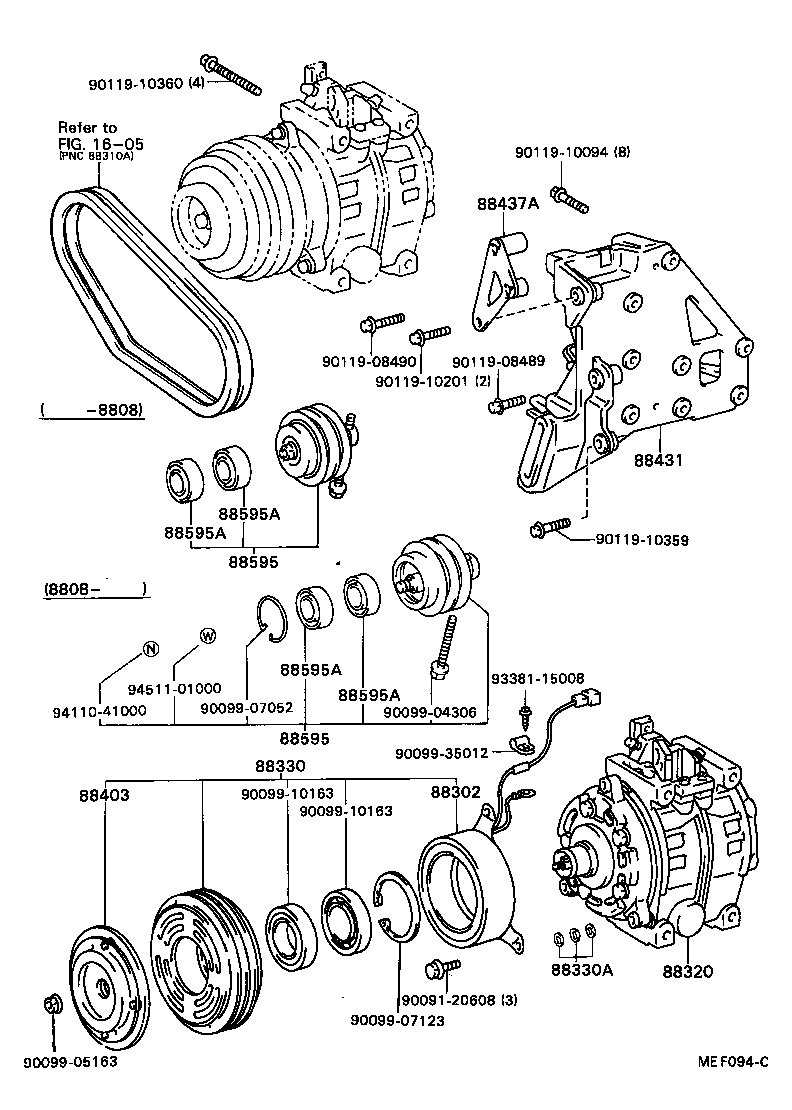

ILLUST NO. 1 OF 2(8408-9301)RB20..WC

COASTER | HEATING AIR CONDITIONING COMPRESSOR ** Refer Fig 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88320 - COMPRESSOR ASSY, COOLER 88330 - CLUTCH ASSY, MAGNET 88330A - WASHER (FOR MAGNET CLUTCH) 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88437A - ATTACHMENT, COMPRESSOR 88595 - PULLEY, COOLER COMPRESSOR IDLE 88595 - PULLEY, COOLER COMPRESSOR IDLE 88595A - BEARING (FOR COOLER IDLE PULLEY) 88595A - BEARING (FOR COOLER IDLE PULLEY) 88595A - BEARING (FOR COOLER IDLE PULLEY) 88595A - BEARING (FOR COOLER IDLE PULLEY) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
