TOYOTA COASTER HZB30R-MD / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

RADIATOR WATER OUTLET

(9001- )1HZ

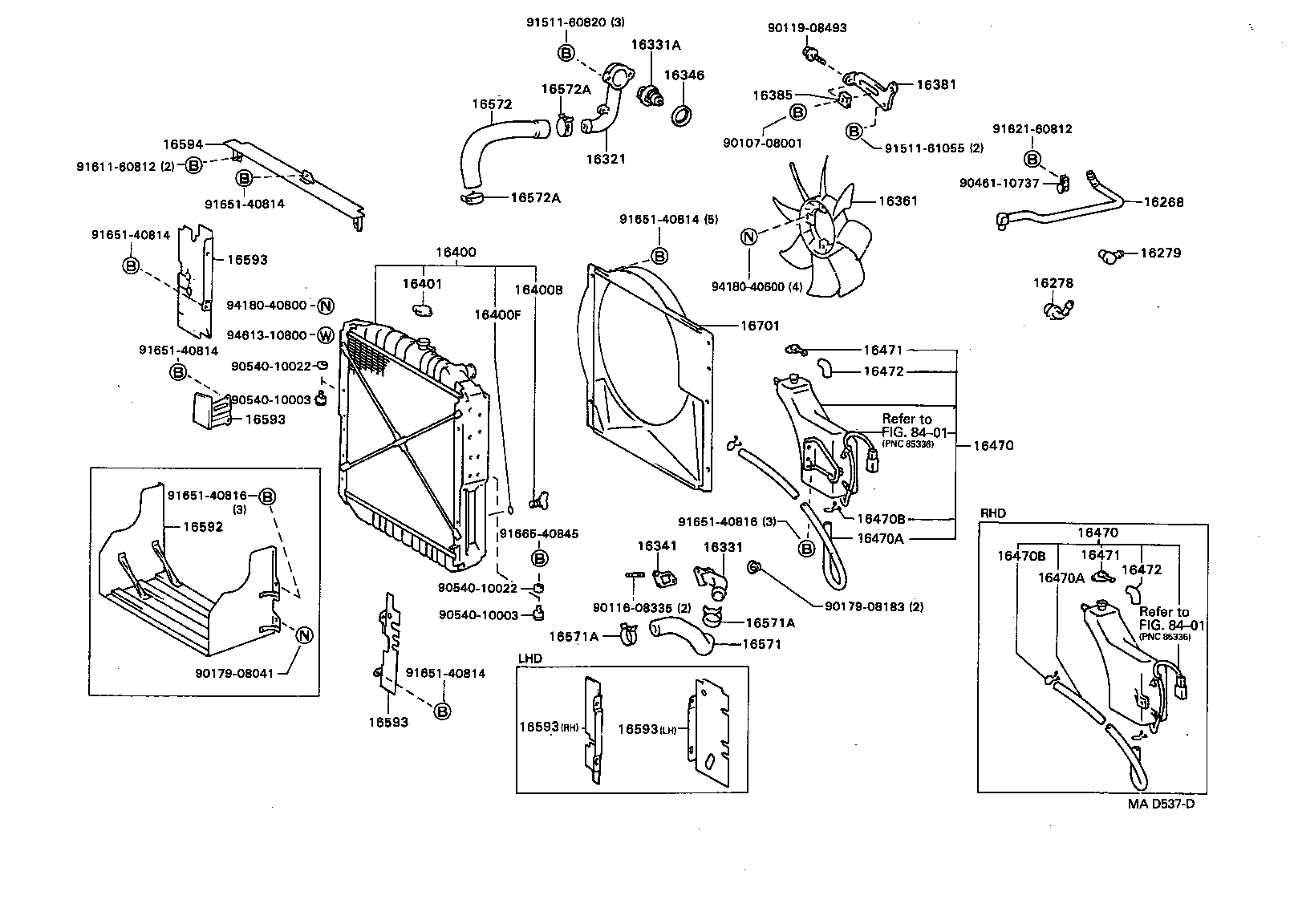

COASTER | RADIATOR WATER OUTLET 16268 - PIPE, WATER BY-PASS, NO.1 16278 - PIPE, WATER BY-PASS, NO.2 16279 - PIPE, WATER BY-PASS, NO.3 16321 - INLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16470 - TANK ASSY, RADIATOR RESERVE 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16471 - CAP SUB-ASSY, RESERVE TANK 16471 - CAP SUB-ASSY, RESERVE TANK 16472 - HOSE, BREATHER 16472 - HOSE, BREATHER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16592 - GUIDE, RADIATOR AIR, NO.3 16593 - GUIDE, RADIATOR AIR, NO.1 16593 - GUIDE, RADIATOR AIR, NO.1 16593 - GUIDE, RADIATOR AIR, NO.1 16593 - GUIDE, RADIATOR AIR, NO.1 16593 - GUIDE, RADIATOR AIR, NO.1 16594 - GUIDE, RADIATOR AIR, NO.2 16701 - SHROUD SUB-ASSY, FAN ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
