TOYOTA CRESSIDA LX80L-AEMES / TOOL-ENGINE-FUEL / INJECTION PUMP BODY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

INJECTION PUMP BODY

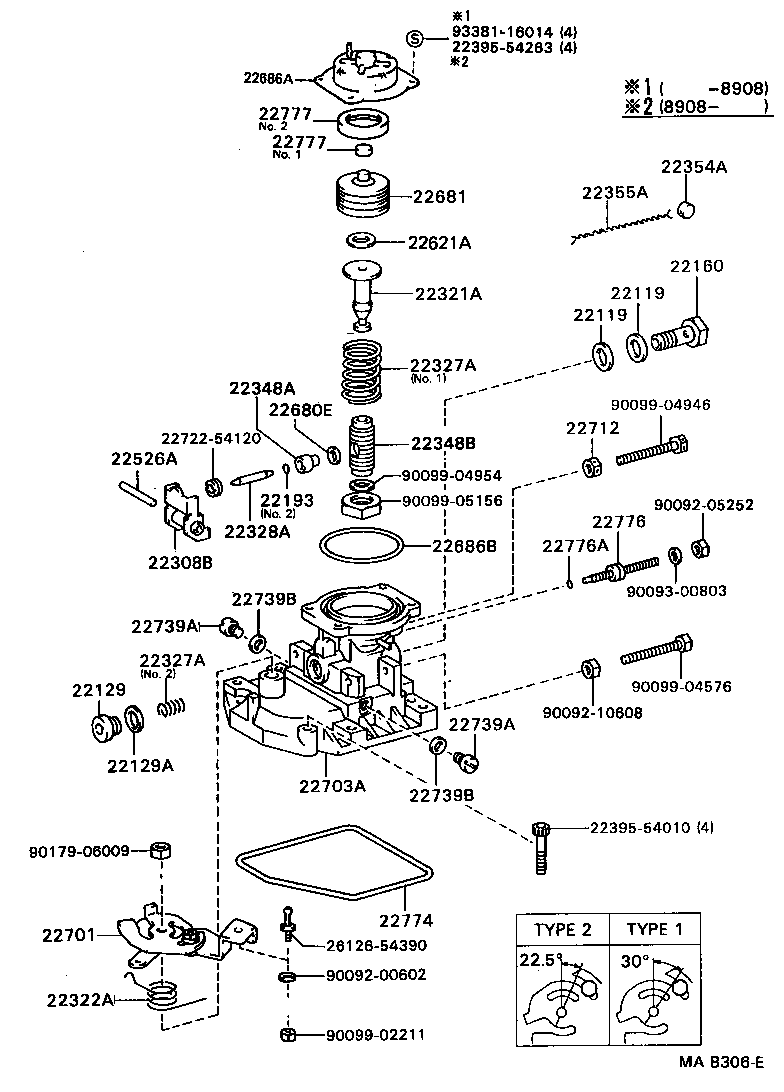

ILLUST NO. 1 OF 2(8808-9302)2L..5F

CRESSIDA | INJECTION PUMP BODY 22119 - WASHER, AIR BLEEDER NIPPLE 22119 - WASHER, AIR BLEEDER NIPPLE 22129 - PLUG, SCREW 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) 22160 - SCREW SUB-ASSY, OVERFLOW 22193 - RING, O(FOR LEVER CONNECTING PIN) 22308B - LEVER SUB-ASSY, CONTROL 22321A - ROD, PUSH 22322A - SPRING, RETURN 22327A - SPRING(FOR BELLOWS) 22327A - SPRING(FOR BELLOWS) 22328A - PIN, LEVER CONNECTING 22348A - BUSHING, GUIDE 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) 22354A - SEAL, ROD 22355A - WIRE, GOVERNOR HOUSING SEAL ** Std Part ** Std Part 22526A - PIN, LEVER SUPPORT 22621A - WASHER, TIMER ADJUSTING 22680E - WASHER, COPPER PLATE 22681 - BELLOWS SUB-ASSY, PNEUMATIC 22686A - COVER, PNEUMATIC BELLOWS 22686B - RING, O(FOR BELLOWS COVER) 22701 - LEVER SUB-ASSY, ADJUSTING 22703A - COVER SUB-ASSY, GOVERNOR 22712 - NUT, ROCK ** Std Part 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) 22774 - GASKET, GOVERNOR COVER 22776 - SCREW, SMOKE SET ADJUSTING 22776A - RING, O(FOR SMOKE SET SCREW) 22777 - CAP, RUBBER(FOR BELLOWS) 22777 - CAP, RUBBER(FOR BELLOWS) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
