TOYOTA DYNA100 LH80R-PDBQ3 / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SHIFT LEVER RETAINER

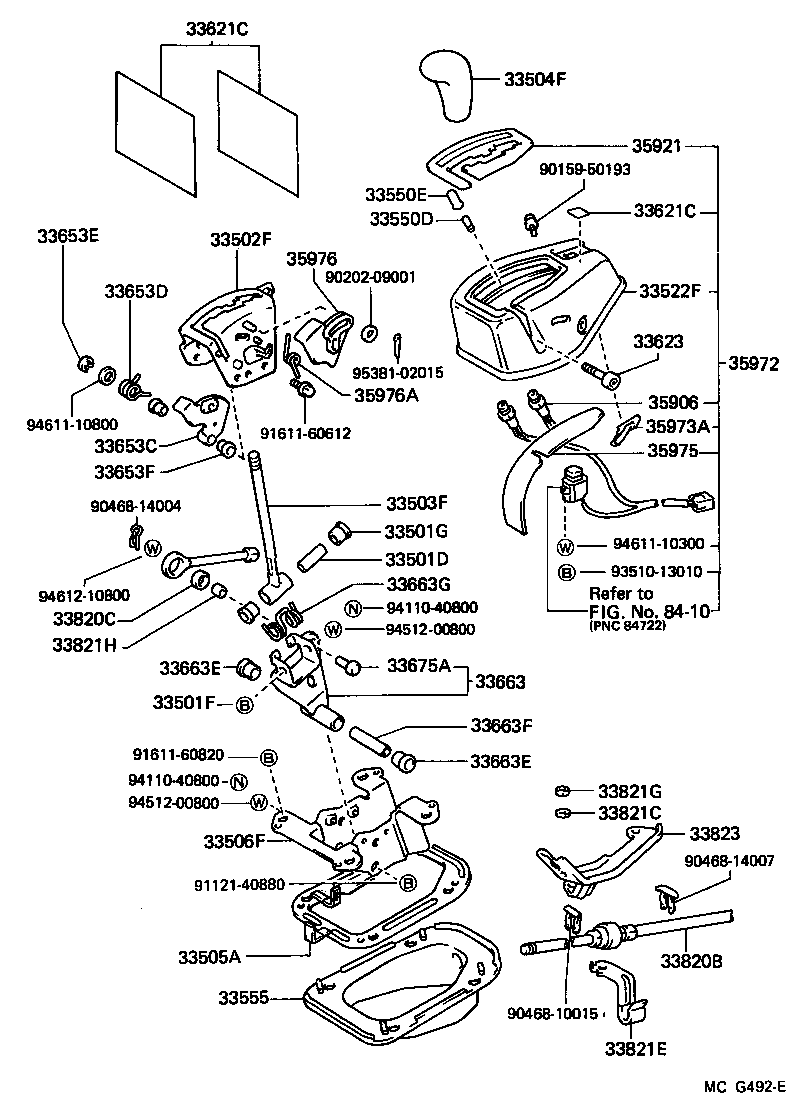

ILLUST NO. 1 OF 2(8808- )4FC

DYNA100 | SHIFT LEVER RETAINER 33501D - COLLAR (FOR FLOOR SHIFT CONTROL SHAFT) 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33505A - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT) 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) 33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT) 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33555 - BOOT, SHIFT LEVER 33621C - LABEL, CONTROL LEVER INFORMATION 33621C - LABEL, CONTROL LEVER INFORMATION 33623 - BUTTON, SHIFT LEVER KNOB 33653C - GUIDE, SHIFT LEVER WIRE 33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE) 33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE) 33653F - BUSH 33663 - LEVER, CONTROL 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) 33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER) 33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33820B - CABLE ASSY, TRANSMISSION CONTROL 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) 33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE) 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35972 - COVER, POSITION INDICATOR HOUSING 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
