TOYOTA LAND CRUISER 70 LJ70L-MRXW / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

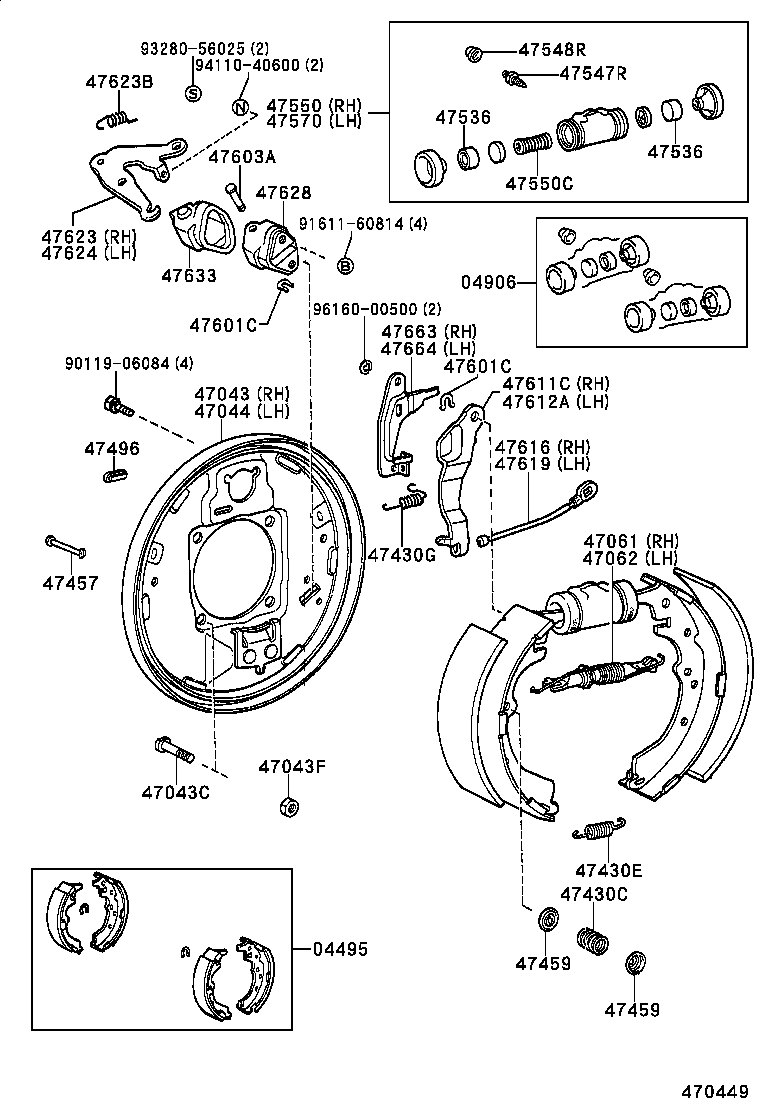

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(9001-9305)LJ70,73,RJ7#

LAND CRUISER 70 | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47061 - STRUT SET, PARKING BRAKE SHOE, RH 47062 - STRUT SET, PARKING BRAKE SHOE, LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601C - WASHER, C(FOR REAR BRAKE) 47601C - WASHER, C(FOR REAR BRAKE) 47603A - PIN, W/HOLE(FOR REAR BRAKE) 47611C - LEVER, PARKING BRAKE SHOE, RH 47612A - LEVER, PARKING BRAKE SHOE, LH 47616 - WIRE, PARKING BRAKE, RH 47619 - WIRE, PARKING BRAKE, LH 47623 - CRANK, PARKING BRAKE BELL, NO.1 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) 47624 - CRANK, PARKING BRAKE BELL, NO.2 47628 - BRACKET, REAR BRAKE BELLCRANK 47633 - BOOT, PARKING BRAKE BELLCRANK 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
