TOYOTA LAND CRUISER 70 PZJ75LV-MRW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

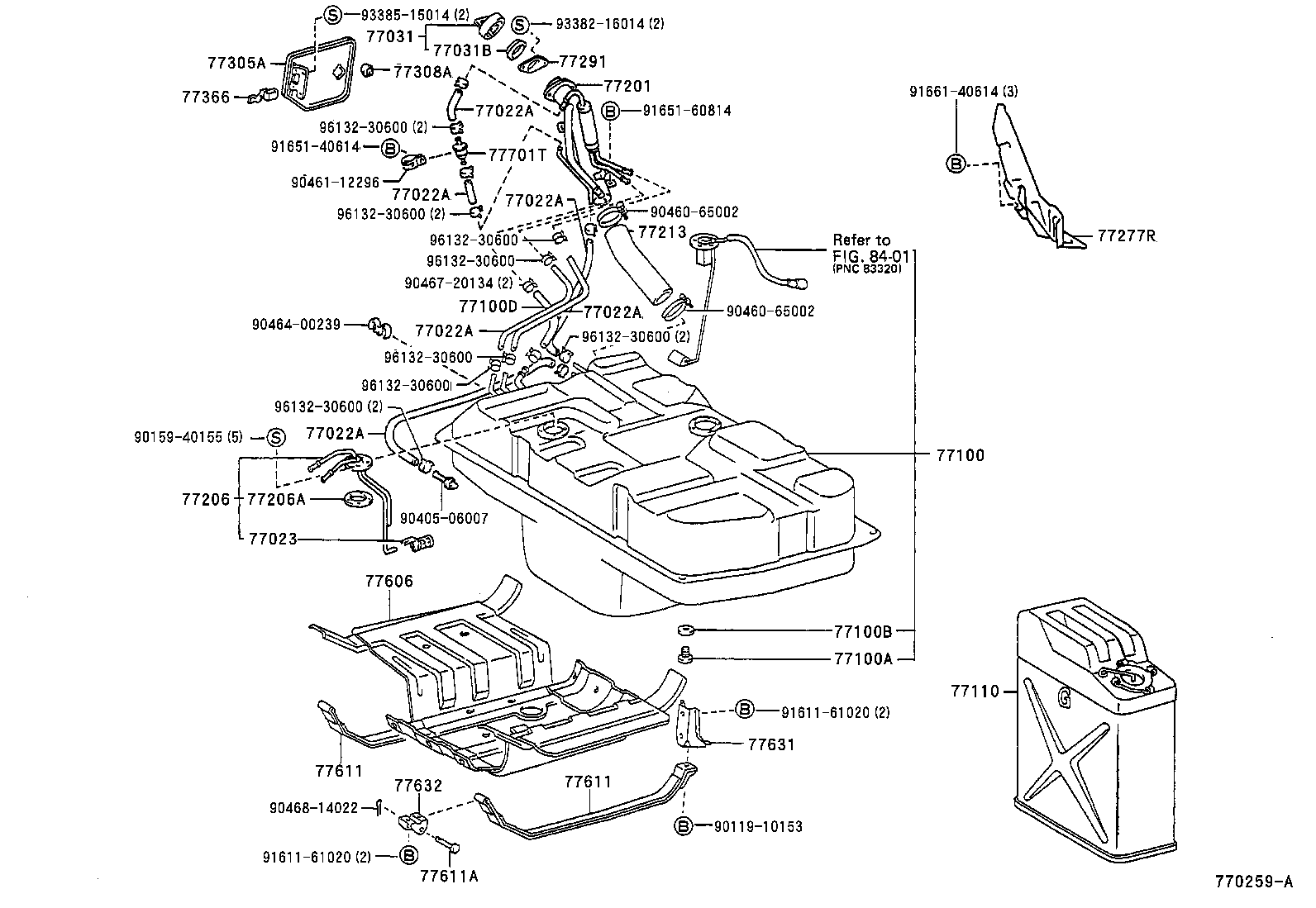

ILLUST NO. 1 OF 2(9001-9201)PZJ75

LAND CRUISER 70 | FUEL TANK TUBE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77110 - TANK ASSY, AUXILIARY FUEL 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291 - PACKING, FUEL TANK SUPPORT, UPPER 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611 - BAND, FUEL TANK 77611 - BAND, FUEL TANK 77611A - PIN (FOR FUEL TANK BAND) 77631 - BRACKET, FUEL TANK, NO.1 77632 - BRACKET, FUEL TANK, NO.2 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
