TOYOTA LAND CRUISER 80 FZJ80L-GNPEKA / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

METER

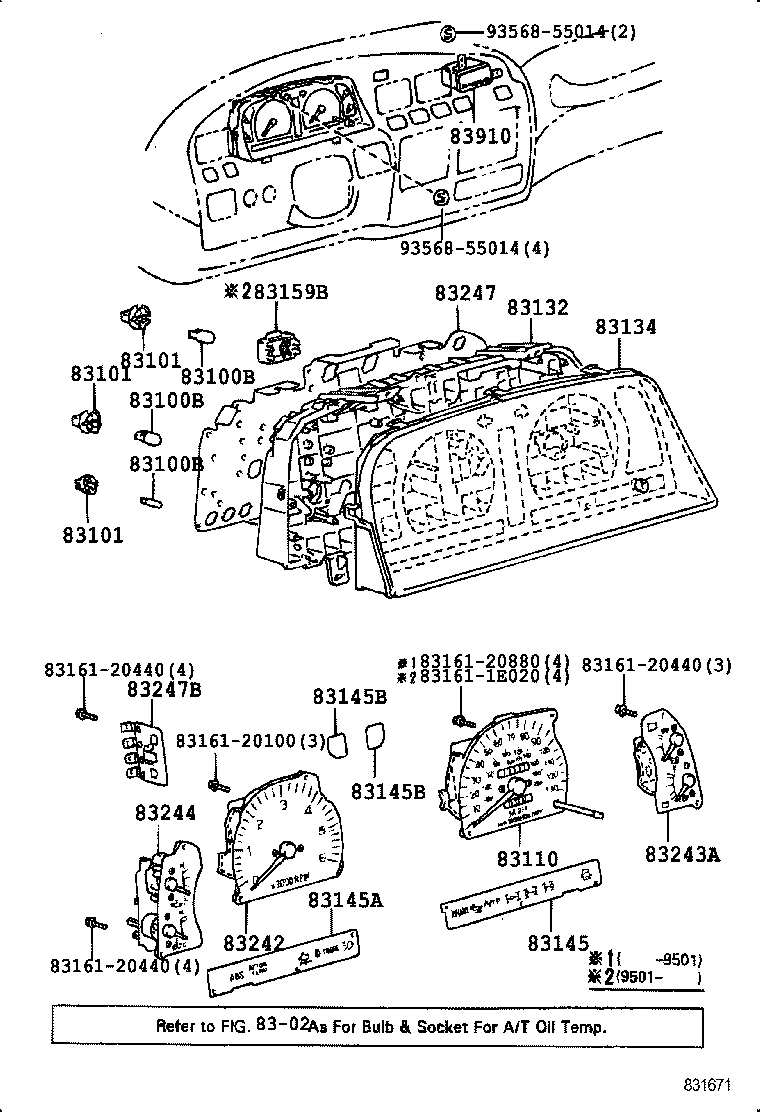

SPEEDMETER & CLOCK ILLUST NO. 2 OF 3(9208- )

LAND CRUISER 80 | METER ** Refer Fig 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83110 - SPEEDOMETER ASSY 83132 - CASE, COMBINATION METER 83134 - COVER, COMBINATION METER, NO.1 83145 - LENS, METER, NO.1 83145A - LENS, METER, NO.2 83145B - LENS, METER, NO.3 83145B - LENS, METER, NO.3 83159B - RELAY ASSY, METER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 83242 - TACHOMETER ASSY, ENGINE 83243A - GAUGE SUB-ASSY, FUEL RECEIVER 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER 83247 - PLATE, METER CIRCUIT 83247B - PLATE, METER CIRCUIT, NO.2 83910 - CLOCK ASSY ** Std Part ** Std Part
