TOYOTA CELICA AT200L-BCPSKA / POWERTRAIN-CHASSIS / PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

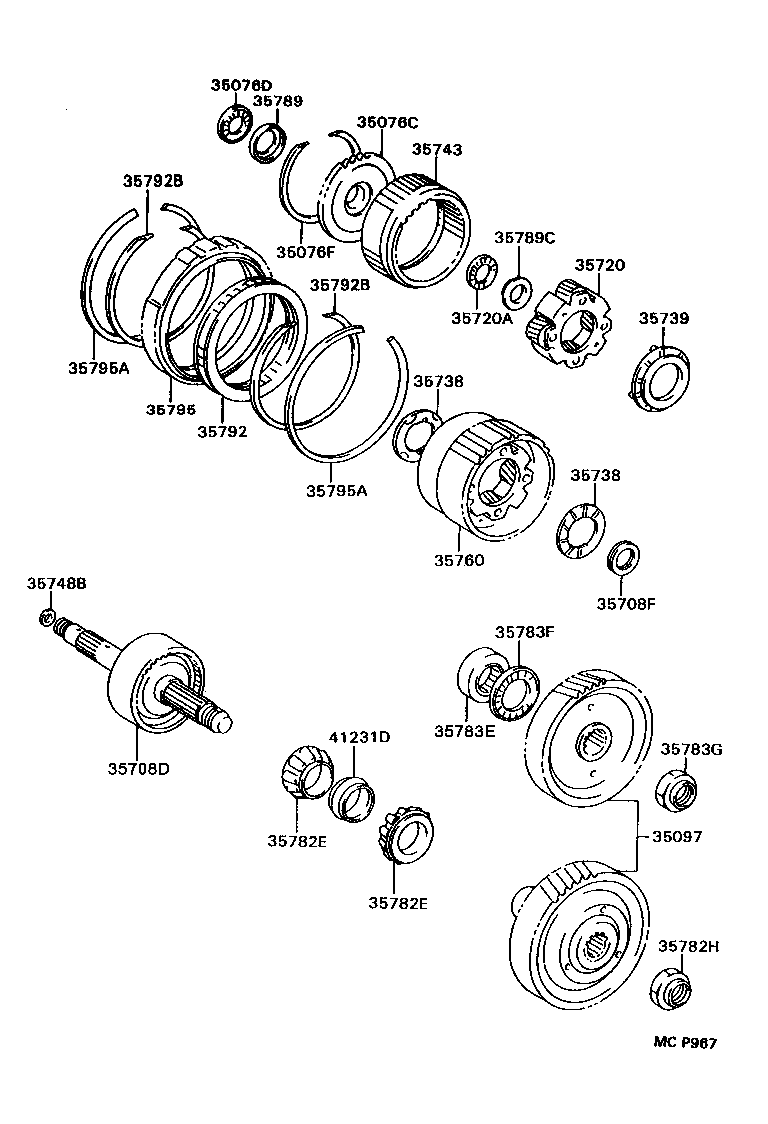

PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM

A246E (9309- )AT200..ATM

CELICA | PLANETARY GEAR REVERSE PISTON COUNTER GEAR ATM 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE) 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE 35708D - SHAFT SUB-ASSY, INTERMEDIATE 35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) 35720 - GEAR ASSY, FRONT PLANETARY 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR) 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 35743 - GEAR, FRONT PLANETARY RING 35748B - RING, INTERMEDIATE SHAFT OIL SEAL 35760 - GEAR ASSY, REAR PLANETARY 35782E - BEARING(FOR COUNTER DRIVE GEAR) 35782E - BEARING(FOR COUNTER DRIVE GEAR) 35782H - NUT(FOR COUNTER DRIVE GEAR) 35783E - BEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR) 35783F - BEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR) 35783G - NUT(FOR COUNTER DRIVEN GEAR) 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) 35792 - CLUTCH, 1 WAY, NO.2 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) 35795 - RACE, 1 WAY CLUTCH OUTER 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) 41231D - SPACER, DRIVE PINION BEARING
