TOYOTA CELICA ST204L-BCPGKK / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONSOLE BOX BRACKET

(9309- )

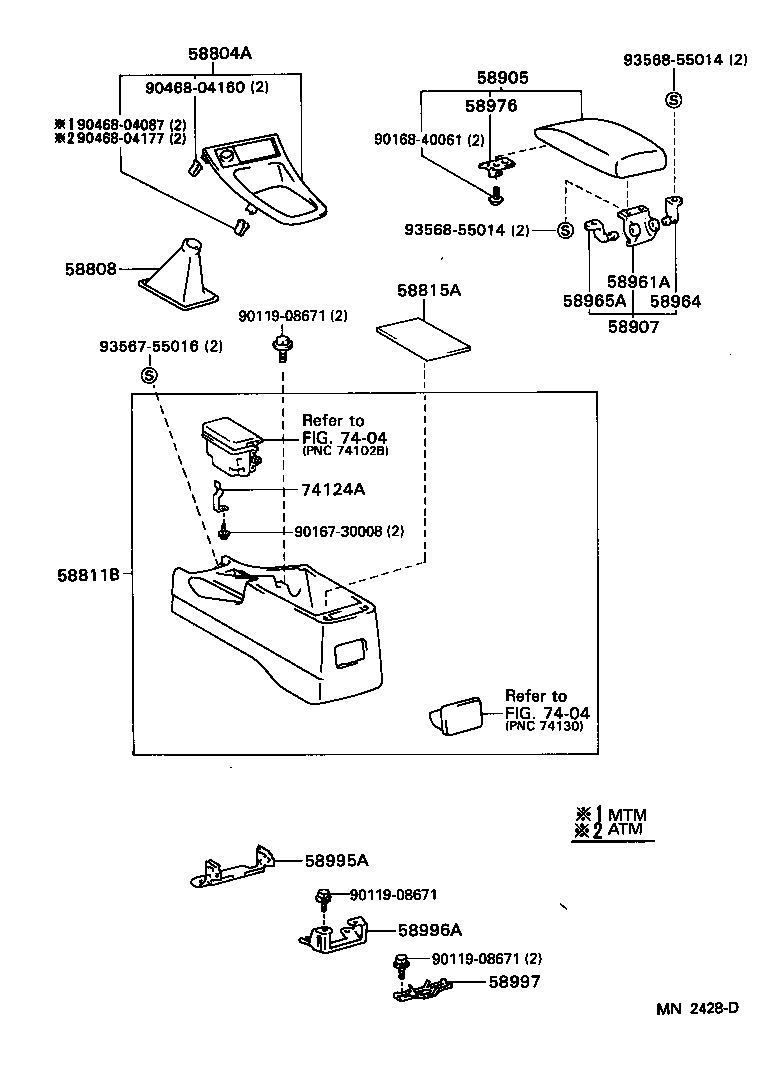

 CELICA |  CONSOLE BOX BRACKET 58804A - PANEL SUB-ASSY, CONSOLE, UPPER 58808 - COVER SUB-ASSY, SHIFTING HOLE 58811B - BOX, CONSOLE 58815A - CARPET, CONSOLE BOX 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 ** Refer Fig ** Refer Fig 74124A - SPRING, ASH RECEPTACLE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
